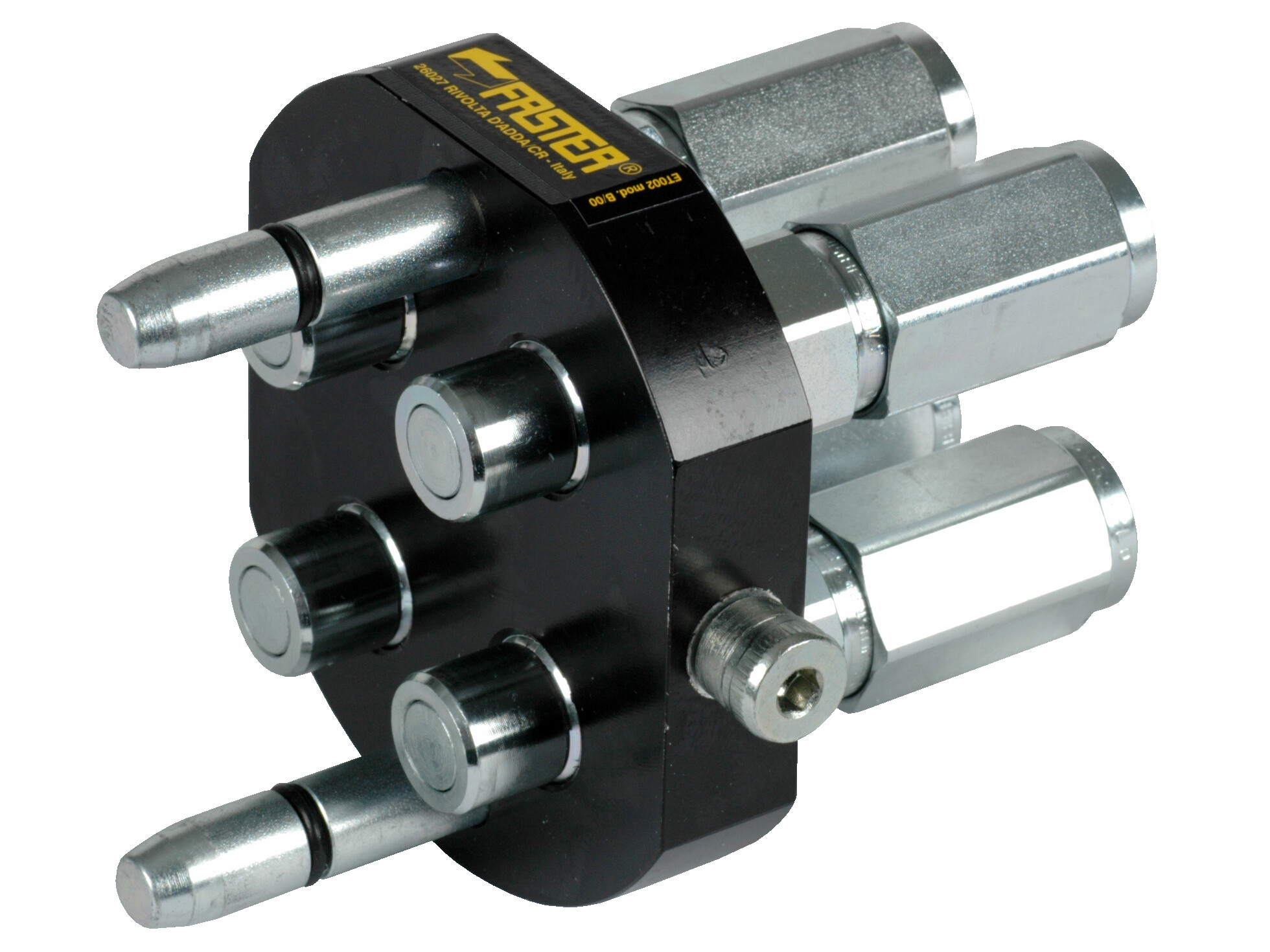

MultiFaster mobile part, 3P506 4x3/8 outlets, 1/2 BSP fem.
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
Partnumber:
3P506412GMC
Package size:
0 pcs
Min. order quantity is:
1 pcs
Antal anslutningar
4
Flödeshastighet nominell LMin
40 lpm
Gänga
G 1/2 BSP
Koppling under tryck
Allowed
Modell
3P506
Modell kod
3P506-4-12GMC
Märke namn
Faster
Packningsmaterial
NBR, Polyurethane
Rostbeständighet
500 hours salt spray ISO 9227
Serie
P506
Storlek
3/8 "
Temperatur max.
+100 °C
Temperatur min.
-25 °C
Tryck max.
250 bar
Tryck spräng min.
1000 bar
Ytskiktbehandling
Zinc coating (CR III)
Package size
0 pcs
Barcode
5704334222408
Gross weight
1,76 Kg
Net weight
1,76 Kg
Country of origin
ITA
Intrastat code
84812010
MultiFaster quick coupling.
Quick-release multiconnection system to connect several hydraulic and electrical lines in one operation. No fluid spillage or air inclusion during connection and disconnection of the multi-couplers.
Both 2P... and 3P... series are equipped with flat-face couplings.
3P... series is equipped with flat-face male couplings type 3FFNP on the mobile part, in order to achieve an effortless connection and disconnection under maximum working pressure.
