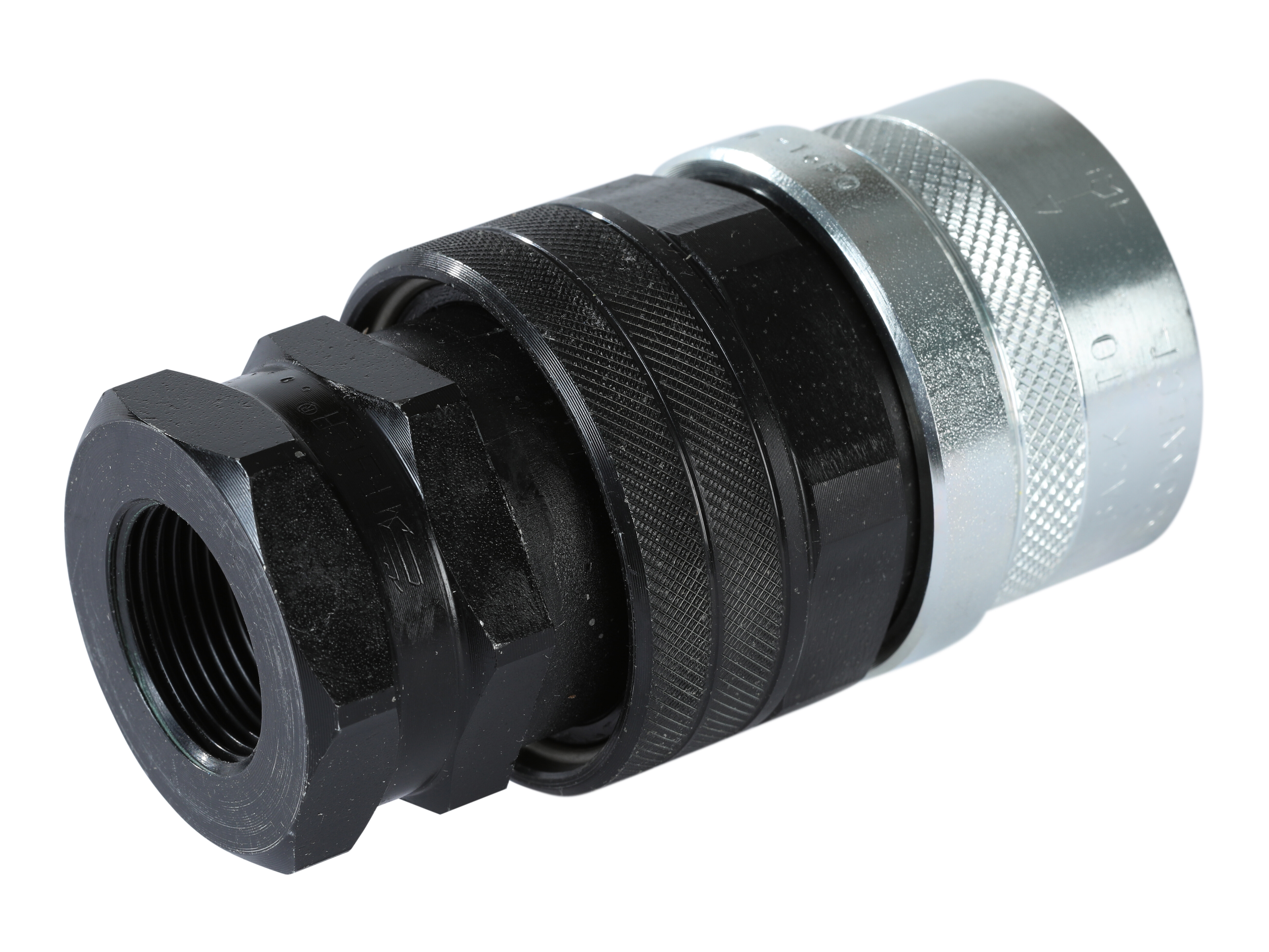

Screw coupling female flatface 3FFV - DN12 - 1/2"

Faster Flat-Face Screw-on type quick coupler.

Connection system: screw-on.

Disconnection system: screw-on.

Shut-off system: flat valve.

Connectability: both male and female couplings under pressure.

Disconnection under pressure: allowed.

Interchangeability: according to Faster internal standard.

Screw-on latching system by hexagonal sleeve.

Male couplings with double valve.

Additional safety sleeve.

FPQ Faster Premier Quality surface treatment.

Automatic slider for threads protection.

Safety factor, pressure:
Dynamic: 1:2.
Static: 1:4.

Varenummer:
3FFV12GASF

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Screw coupling male flatface 3FFV - DN12 - 1/2"
Varenummer: 3FFV12GASM
Brand Name
Faster

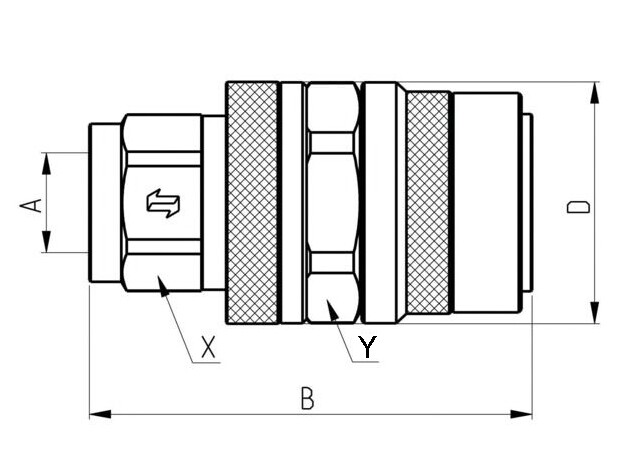

Dimension B
81.8 mm

Dimension D
45 mm

Dimension X
30 mm

Dimension Y
41 mm

Flow rate nominal LMin
72 lpm

Material
Steel

Model code
3FFV12 GAS F

Pressure max.
300 bar

Sealing material
NBR

Size
1/2 "

Surface treatment
Zinc coating (CR III)

Temperature max.
+100 °C

Temperature min.
-25 °C

Thread inner
G 1/2 BSP
Pakke str.
0 pcs

Stregkode
5704334316763

Brutto vægt
0,70 Kg

Netto vægt
0,70 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

Faster Flat-Face Screw-on type quick coupler.

Connection system: screw-on.

Disconnection system: screw-on.

Shut-off system: flat valve.

Connectability: both male and female couplings under pressure.

Disconnection under pressure: allowed.

Interchangeability: according to Faster internal standard.

Screw-on latching system by hexagonal sleeve.

Male couplings with double valve.

Additional safety sleeve.

FPQ Faster Premier Quality surface treatment.

Automatic slider for threads protection.

Safety factor, pressure:
Dynamic: 1:2.
Static: 1:4.
