SD11/4 spool. Single acting on B-port. 3 positions.

SD11/4 spool. Single acting on B-port. 3 positions.

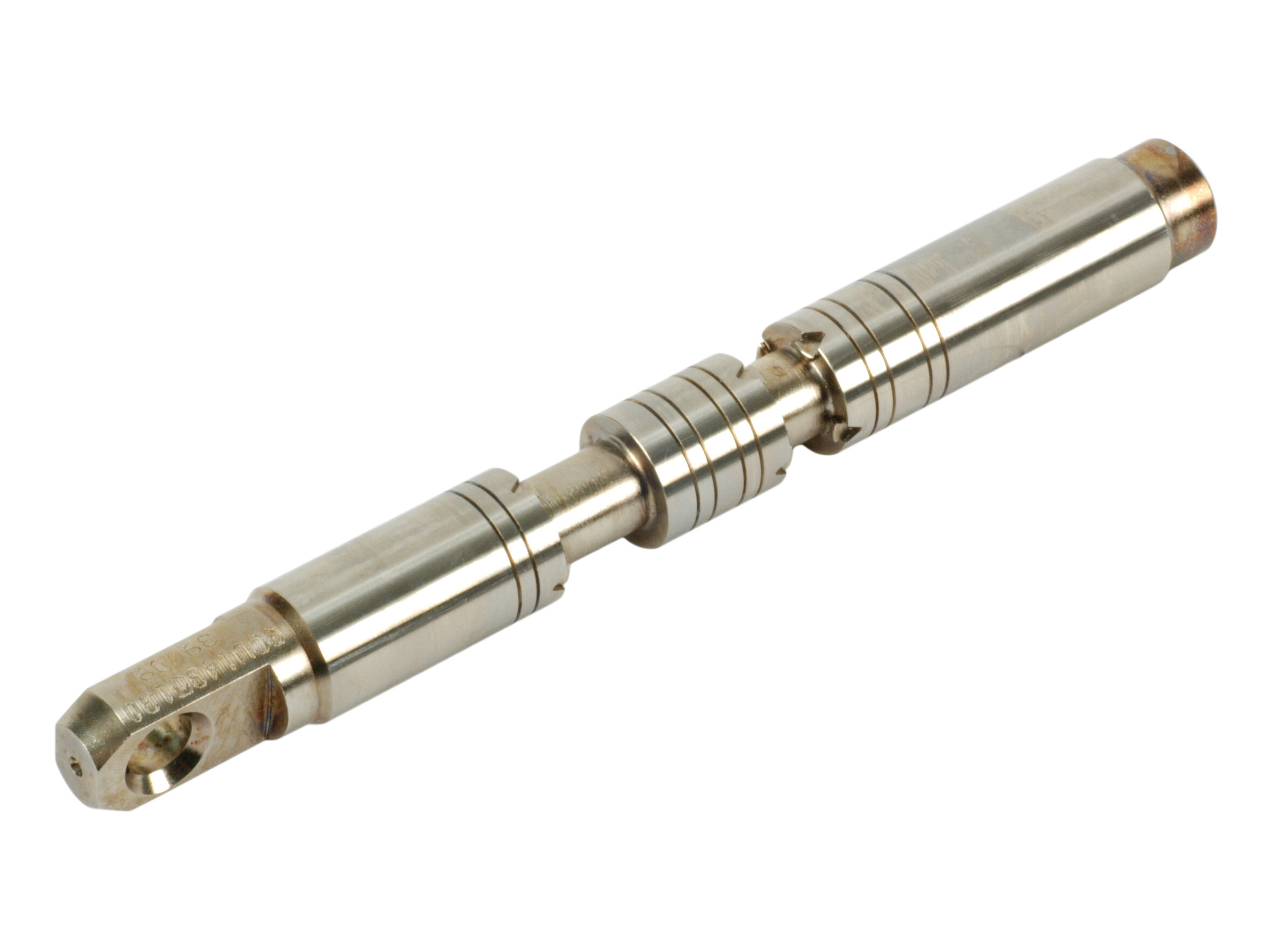

Single acting 3-position spool for SD11 valves. Single acting on B-port. A-port to be plugged with 3/8" BSP plug.

Partnumber:

3CU1435130

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

Brand Name

Walvoil

Contamination level max.

-/19/16 - ISO 4406

Diameter

20 mm

Flow rate nominal LMin

70 lpm

Model code

SD11/4

Pressure max.

315 bar

Package size

0 pcs

Barcode

5704334152866

Gross weight

0,36 Kg

Net weight

0,36 Kg

Country of origin

ITA

Intrastat code

84812010

Product information

Single acting 3-position spool for SD11 valves. Single acting on B-port. A-port to be plugged with 3/8" BSP plug.
