Elbow 1 BSPx1.1/4 flange

Artikelnummer:

27PH1620

Förpackningsstorlek:

0 pcs

Minsta beställningskvantitet:

1 pcs

Accessories (1)

O-ring 90S

Partnumber: 37.69X3.53S

Specifications
Dimensions and shipping

66,9 mm

Angle

90 °

31,75 mm

Brand Name

FOR

Corrosion resistance

1400 hours salt spray DIN EN ISO 9227

Diameter flange

54 mm

Flange

1.1/4 "

Flange SAE/DIN

6000 PSI

70 mm

Material

Steel

O-ring

37,69X3,53 mm

Shore

Standard ISO

ISO 6162-2

Standard SAE

SAE J518 Code 62

Surface treatment

Electro zinc plated

Thread outer

G 1 BSP

71 mm

Package size

0 pcs

Barcode

5704295991450

Gross weight

0,52 Kg

Net weight

0,52 Kg

Country of origin

ITA

Intrastat code

73071110

Product information

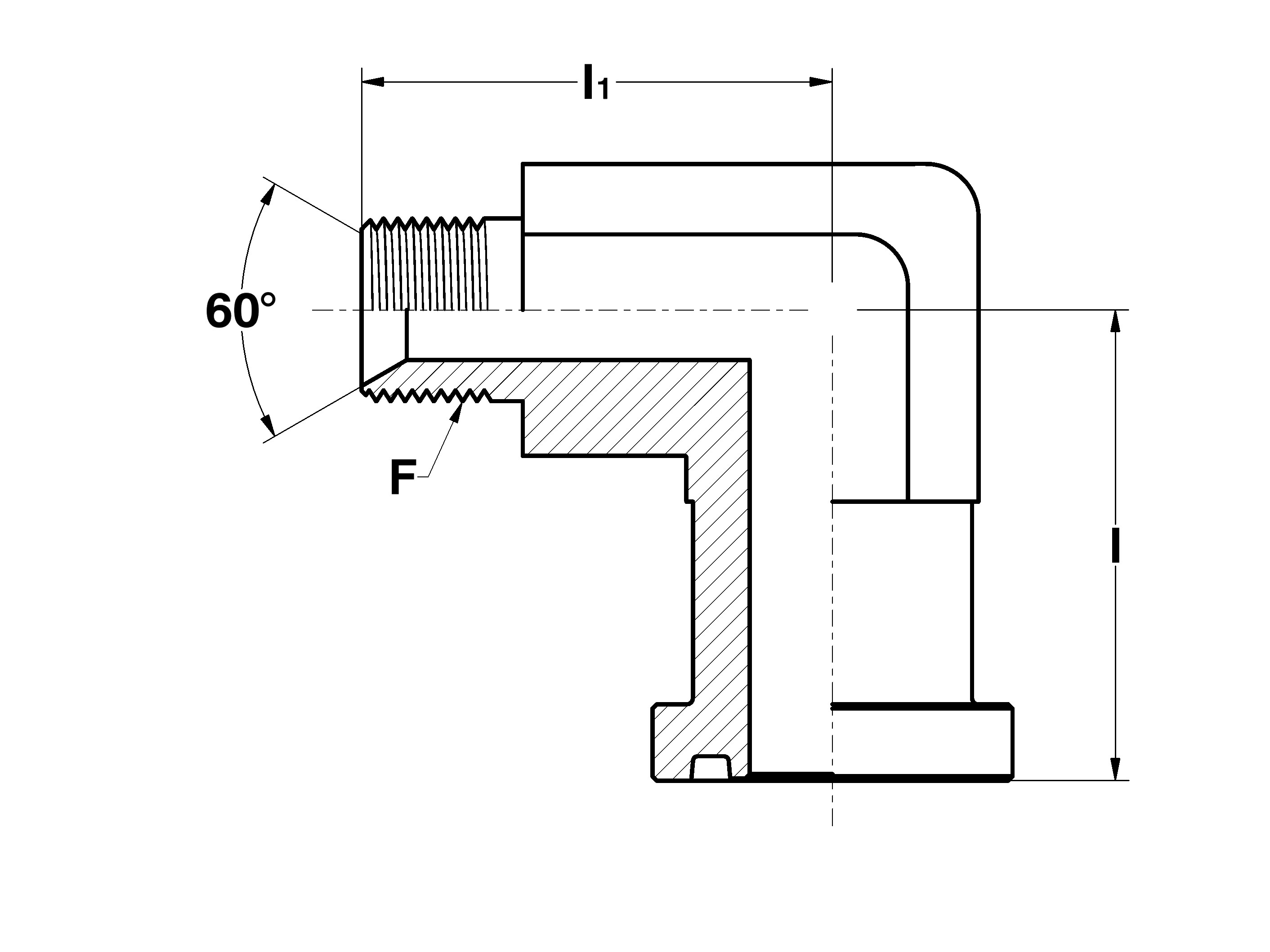

Measure sketch

Elbow 1 BSPx1.1/4 flange

Note: Opening 3D files requires a program that supports the file format
