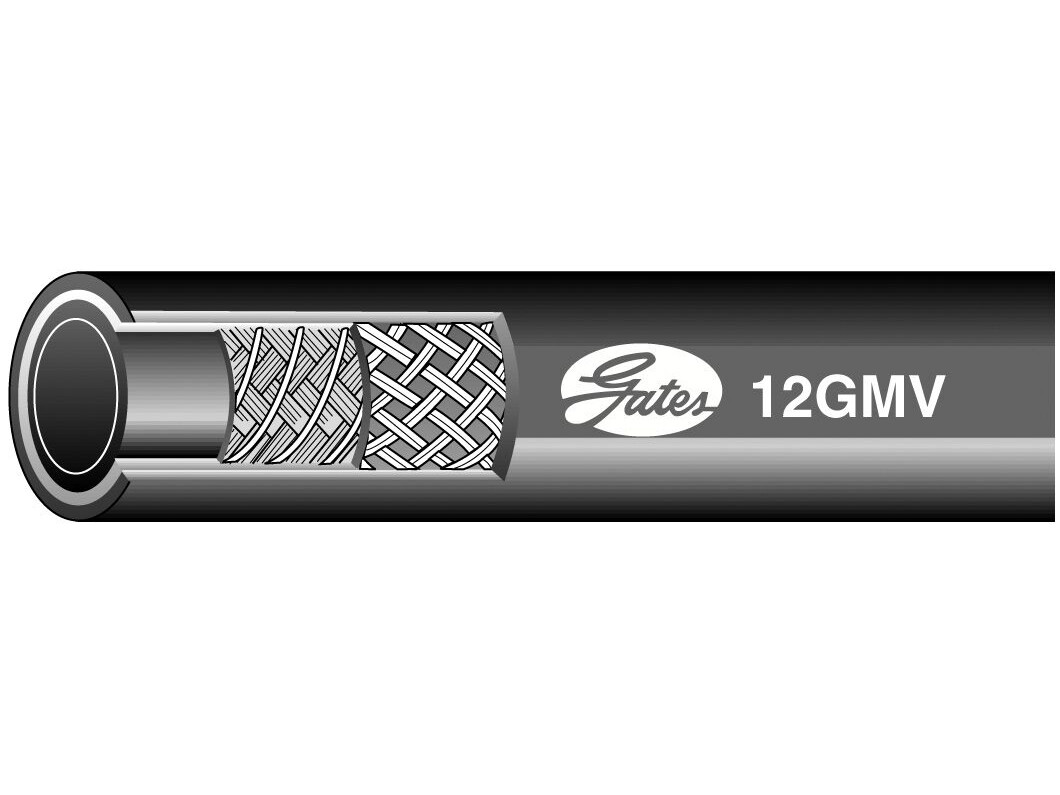

1.1/2" Megavac hose GMV - 11 bar

Flexible and lightweight. DIN 5510 approval for railway applications.

Varenummer:

24GMV

Pakke str.:

0 m

Min. bestillingsenhed er:

1 m

Specifications
Dimensions and shipping

Bend radius

130 mm

Brand Name

Gates

Cover

CR (Chloroprene)

Diameter outer

51.1 mm

Flameresistant

Yes

Hose size

1.1/2 "

Hoseapprovals

MSHA

Length

30 m

Pressure burst min.

44 bar

Pressure max.

11 bar

REACH compliant

Yes

Reinforcement

Spiralled fibre reinforced with helical spiral wire to prevent collapse

RoHs compliant

Yes

Standard DIN

DIN 5510-2

Standard SAE

SAE 100R4

Temperature intermittent max.

+150 °C

Temperature max.

+135 °C

Temperature min.

-40 °C

Tube

NBR (Nitrile)

Vacuum max.

0.9 bar

Package size

0 m

Barcode

5704334272953

Gross weight

0,14 Kg

Net weight

0,14 Kg

Country of origin

USA

Intrastat code

40092100

Product information

Flexible and lightweight. DIN 5510 approval for railway applications.
