Oleostar flowdivider 3/4 -1/2 Vdfr34-90
Pressure compensated Oleostar 3-way divider/combiner. Splitting 50/50% from port E to ports U1 and U2. Flow in opposite direction is combined into one. Valve block in aluminium.
Ports (as divider): E: inlet. U1/U2: outlet.
Partnumber:
1650041100
Package size:
0 pcs
Min. order quantity is:
1 pcs

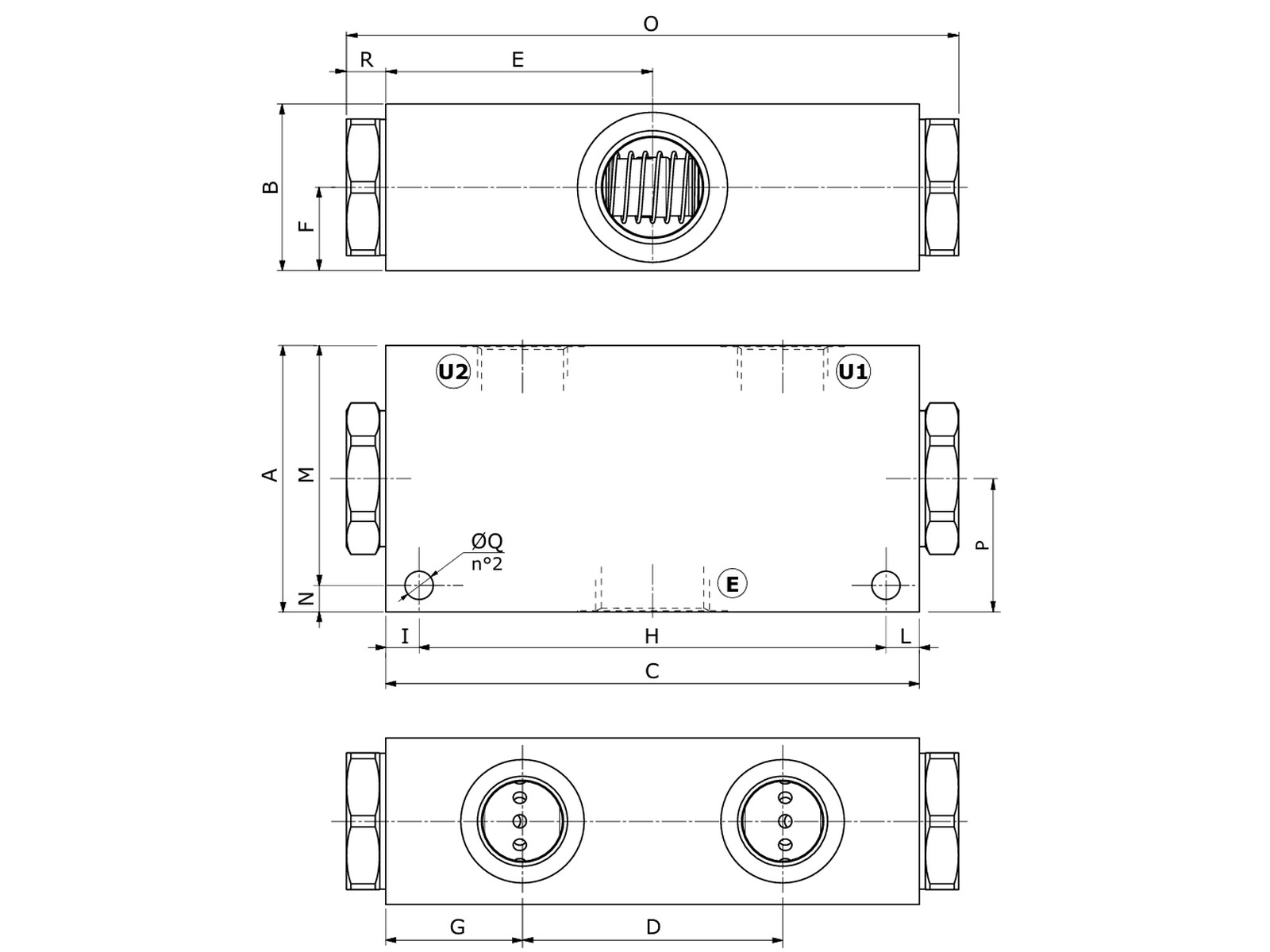

A
80 mm
B
5 mm
Brand Name
Walvoil
C
160 mm
Contamination level max.
18/16/13 - ISO 4406
D
78 mm
E
G 3/4 BSP
F
25 mm
Flow max. regulated
45 lpm
Flow min. regulated
20 lpm
Flow rate min.
40 lpm
Flow rate nominal LMin
90 lpm
Flow split ratio
50/50 %
G
41 mm
H
140 mm
I
10 mm
Inlet flow max.
90 lpm
Inlet flow min.
40 lpm
L
10 mm
M
72 mm
Material
Aluminium
Model code
VDFR34-90
N
8 mm
Number of ways
3
O
183,6 mm
Oil viscocity recommended
10 - 200 cSt
P
40 mm
Port U1/U2
G 1/2 BSP
Pressure max.
210 bar
R
11,8 mm
Temperature max.
+100 °C
Temperature min.
-40 °C
Package size
0 pcs
Barcode
5704334040729
Gross weight
2,15 Kg
Net weight
2,15 Kg
Country of origin
ITA
Intrastat code
84812010
Pressure compensated Oleostar 3-way divider/combiner. Splitting 50/50% from port E to ports U1 and U2. Flow in opposite direction is combined into one. Valve block in aluminium.
Ports (as divider): E: inlet. U1/U2: outlet.
