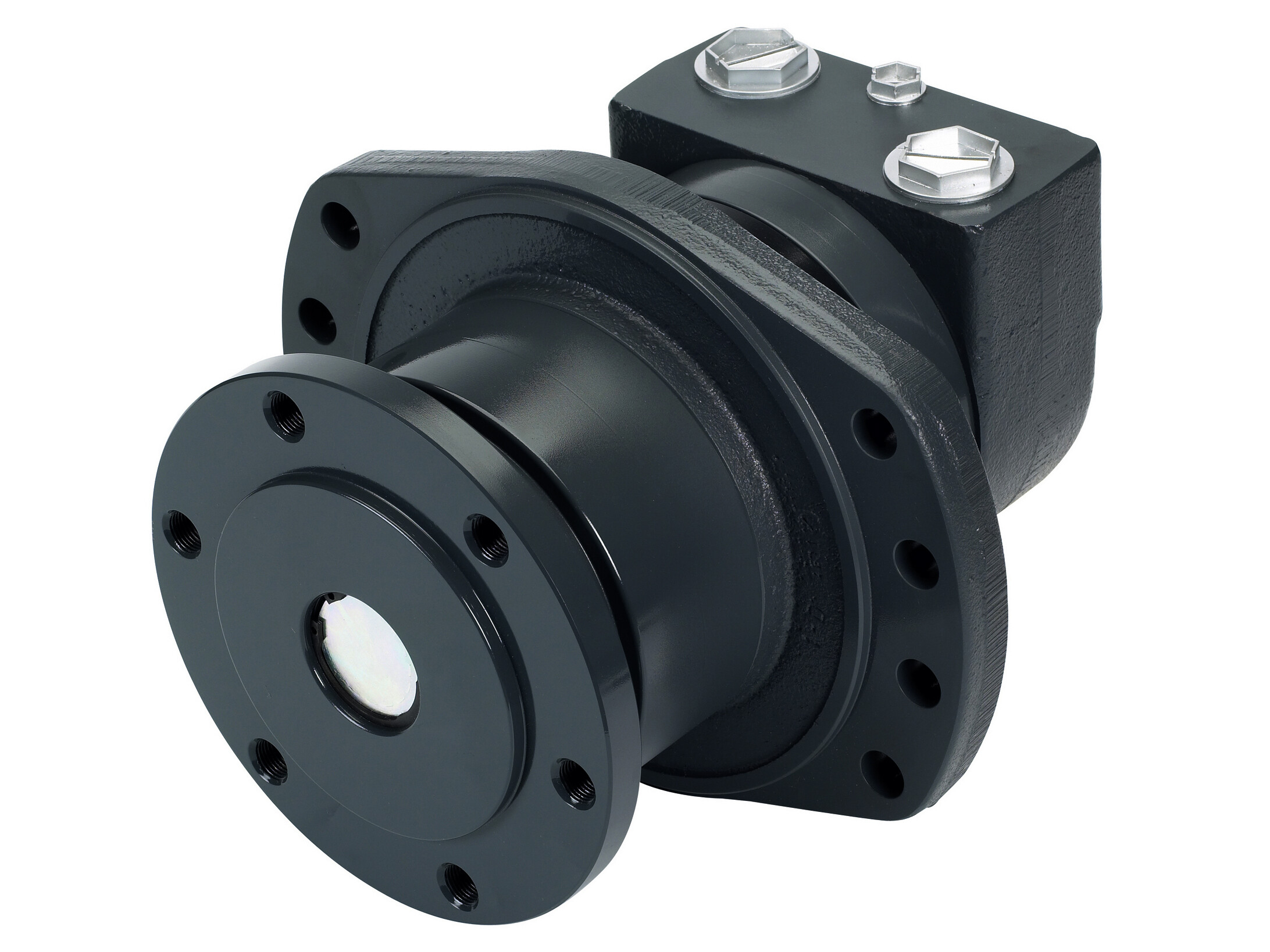

TMVW 500 Orbit motor

TMVW wheel motor. The retracted mounting flange on this wheel motor enables the mounting of a wheel hub so that radial forces are absorbed halfway between the tapered roller bearings in the motor. This ensures optimal utilization of the bearing capacity of the bearings. A wheel motor thus allows for a very compact design.

Varenummer:
151Z8206

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Seal kit for OMT ser. 1 + 2
Partnumber: 151B0113
Brand Name
Danfoss

Continuous power max.
67 kW

Continuous rotation max.
400 rpm

Dimension L1
301.4 mm

Dimension L2
124.5 mm

Displacement
499.6 cm3

Drainport
G 1/4 BSP

Holes circle
265 mm

Oil viscocity recommended
20 - 75 cSt

Pressure drop continuous max.
250 bar

Torque continuous max.
1800 Nm

Working ports
G 1 BSP
Package size
0 pcs

Barcode
5704334420583

Gross weight
55,00 Kg

Net weight
55,00 Kg

Country of origin

Intrastat code
84122981

TMVW wheel motor. The retracted mounting flange on this wheel motor enables the mounting of a wheel hub so that radial forces are absorbed halfway between the tapered roller bearings in the motor. This ensures optimal utilization of the bearing capacity of the bearings. A wheel motor thus allows for a very compact design.
