Seq. valve 2-vejs NC 55l/m 5-55bar CP240-8-B-0-E-B-XXX

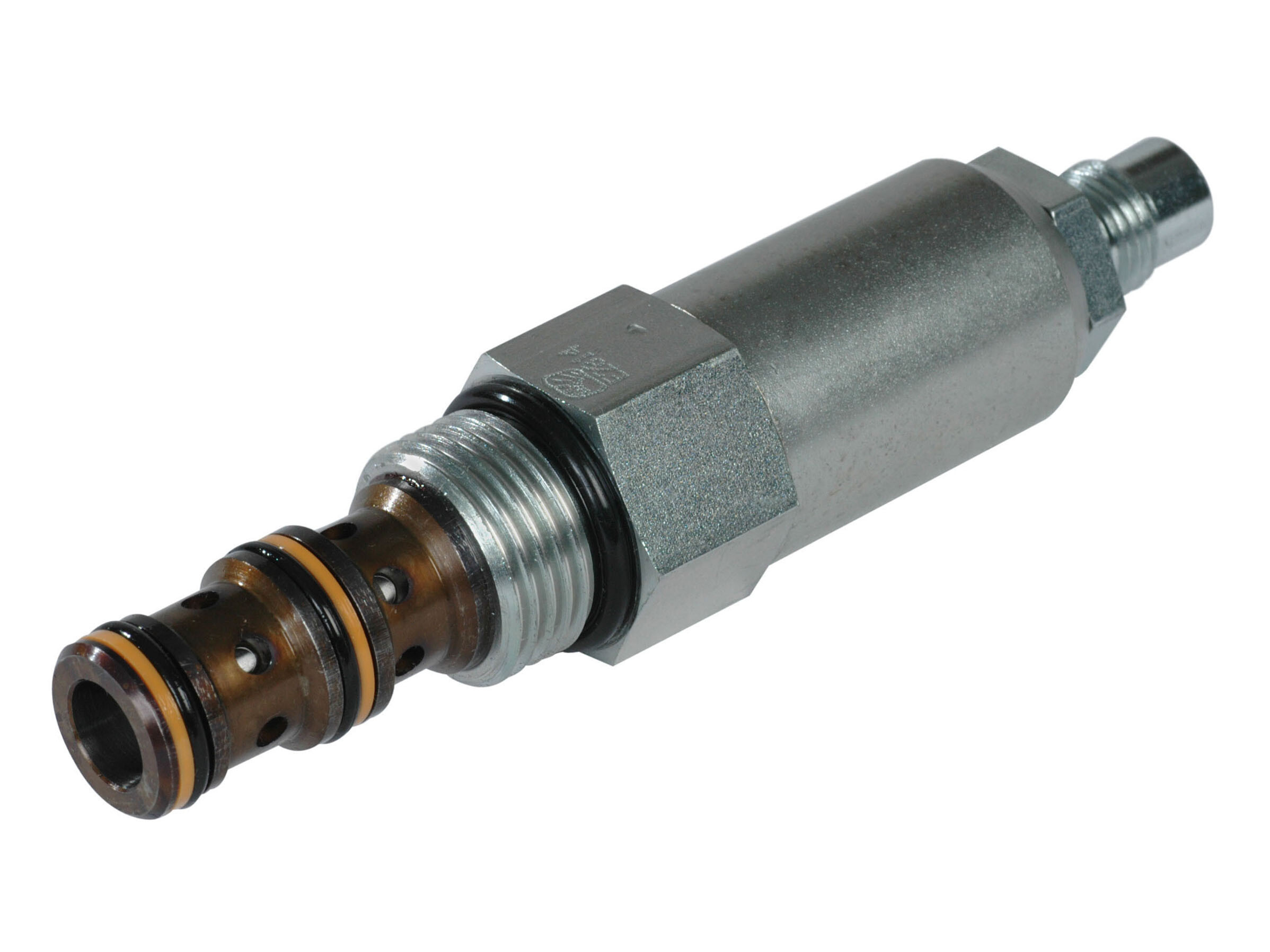

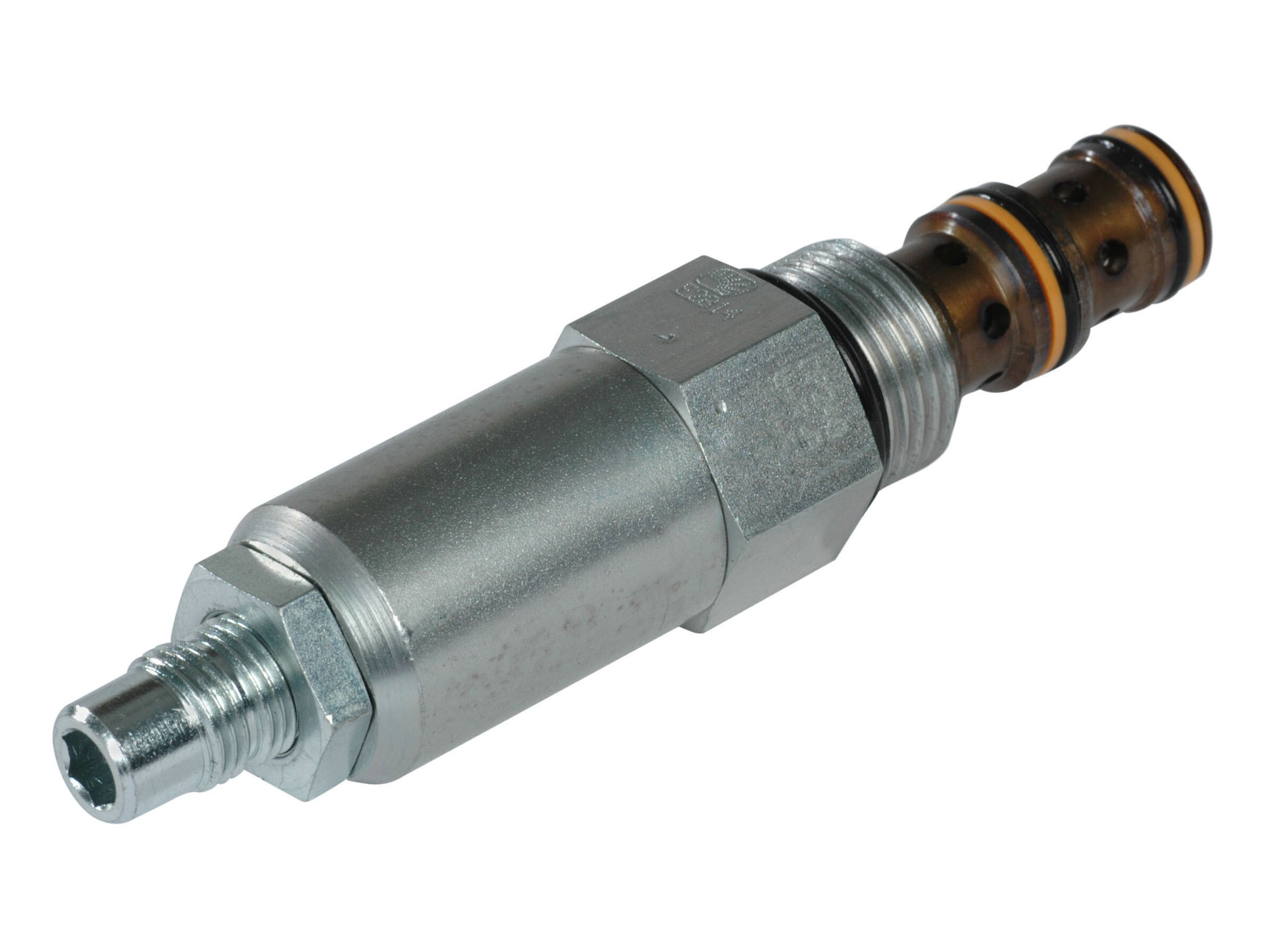

CP240-8, Sequence Valve, Direct Acting, Spool Type, Internal Pilot, External Drain
This is a direct acting, spool type sequence valve that opens from port 1 to port 2 when the setting is reached, which can be used to sequence operations in a system limiting pressure loss.
Connecting port 3 to tank allows this valve to be used as a relief with a consistent setting in applications with high backpressure variation. This valve is ideal for sequencing a secondary operation, while maintaining pressure in the first or as a compensator in a load sense system.
Varenummer:
140970.000
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow rate nominal LMin
55 lpm
Key size
25.4 mm
Model code
CP240-8-B-0-E-B-XXX
Oil viscocity recommended
12 - 54 cSt
Pressure max.
210 bar
Pressure setting max.
55 bar
Pressure setting min.
5 bar
Sealing material
NBR
Torque tightening
41 - 47 Nm
Förpackningsstorlek
0 pcs
Streckkod
5704334469018
Bruttovikt
0,25 Kg
Nettovikt
0,25 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
CP240-8, Sequence Valve, Direct Acting, Spool Type, Internal Pilot, External Drain
This is a direct acting, spool type sequence valve that opens from port 1 to port 2 when the setting is reached, which can be used to sequence operations in a system limiting pressure loss.
Connecting port 3 to tank allows this valve to be used as a relief with a consistent setting in applications with high backpressure variation. This valve is ideal for sequencing a secondary operation, while maintaining pressure in the first or as a compensator in a load sense system.
