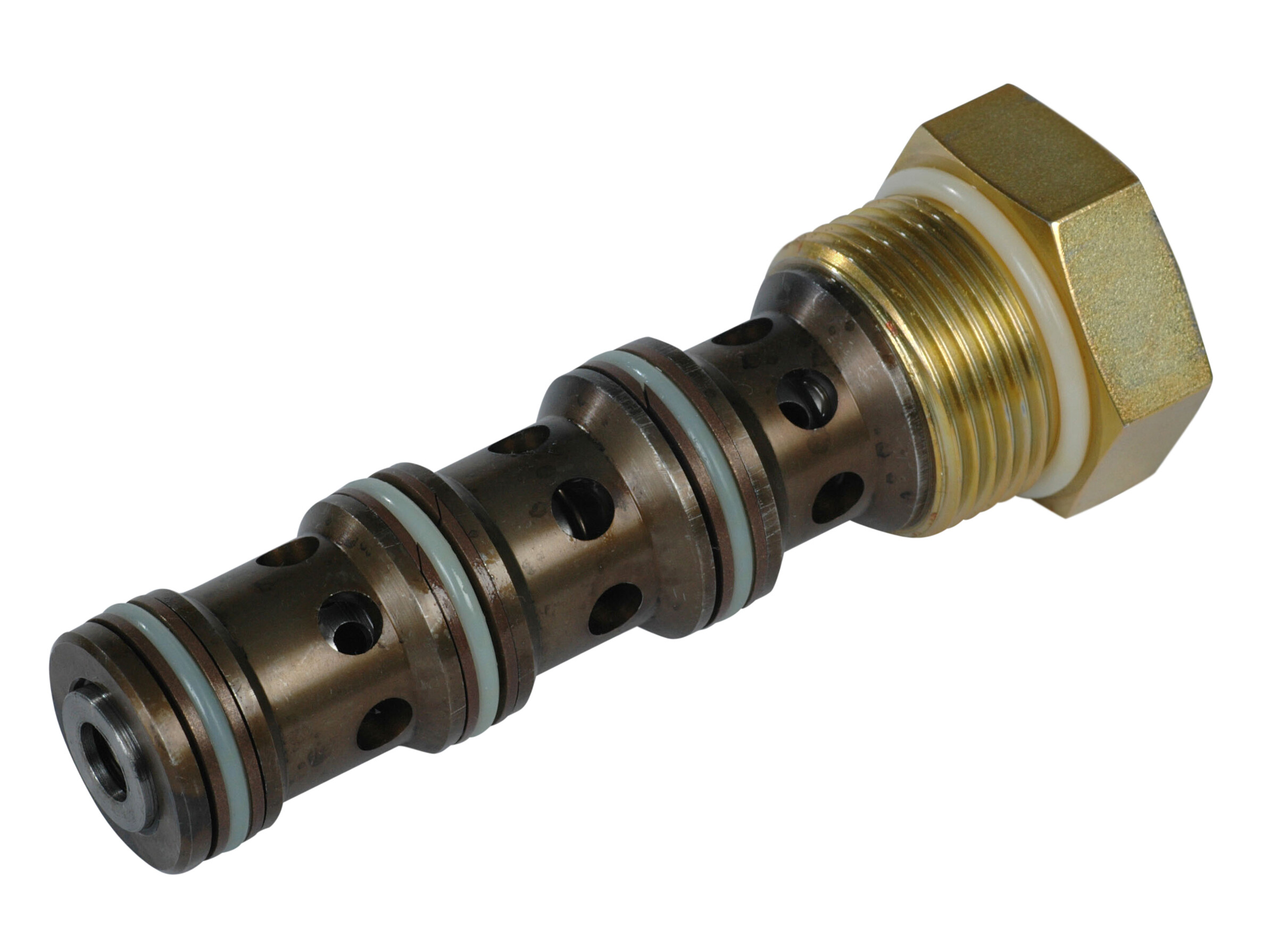

Flow Divider ventil 121l/m 5:3 CP342-3-U-0-2012

This is a fixed ratio flow divider/combiner valve.

In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.

In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve.

Varenummer:
139663

Pakke str.:
0 pcs

Min. bestillingsenhed er:
1 pcs
Ventilhus 3/4" CP16-4-6B
Varenummer: 221311
Brand Name
Danfoss

Cavity
CP16-4

Contamination level max.
20/18/14 - ISO 4406

Flow max. regulated
121 lpm

Flow min. regulated
121 lpm

Flow rate nominal LMin
150 lpm

Model code
CP342-3-U-0-2012

Oil viscocity recommended
12 - 54 cSt

Pressure compensated
Yes

Pressure max.
450 bar

Sealing material
NBR

Temperature max.
+100 °C

Temperature min.
-40 °C

Torque tightening
122 - 136 Nm
Pakke str.
0 pcs

Stregkode
5704334467663

Brutto vægt
0,41 Kg

Netto vægt
0,41 Kg

Oprindelsesland
ITA

Intrastat varekode
84812010

This is a fixed ratio flow divider/combiner valve.

In dividing mode, flow enters port 3 and passes across two fixed orifices in linked spools. If the pressure drop through one orifice is higher than the other, then the spools will move together to restrict the flow in the lower pressure outlet port. This maintains equal pressure drops across the spools, thus maintaining the flow division in the outlet ports.

In combining mode, flow will enter ports 2 and 4 pass through the orifices, which causes the spools to move to restrict the higher-pressure inlet and maintain equal pressure drops and equal flow into the valve.
