Relief Valve CP200-7-B-0-E-C-XXX

Relief Valve CP200-7-B-0-E-C-XXX

CP200-7, Relief Valve, Differential Area, Poppet Type, Bi-directional

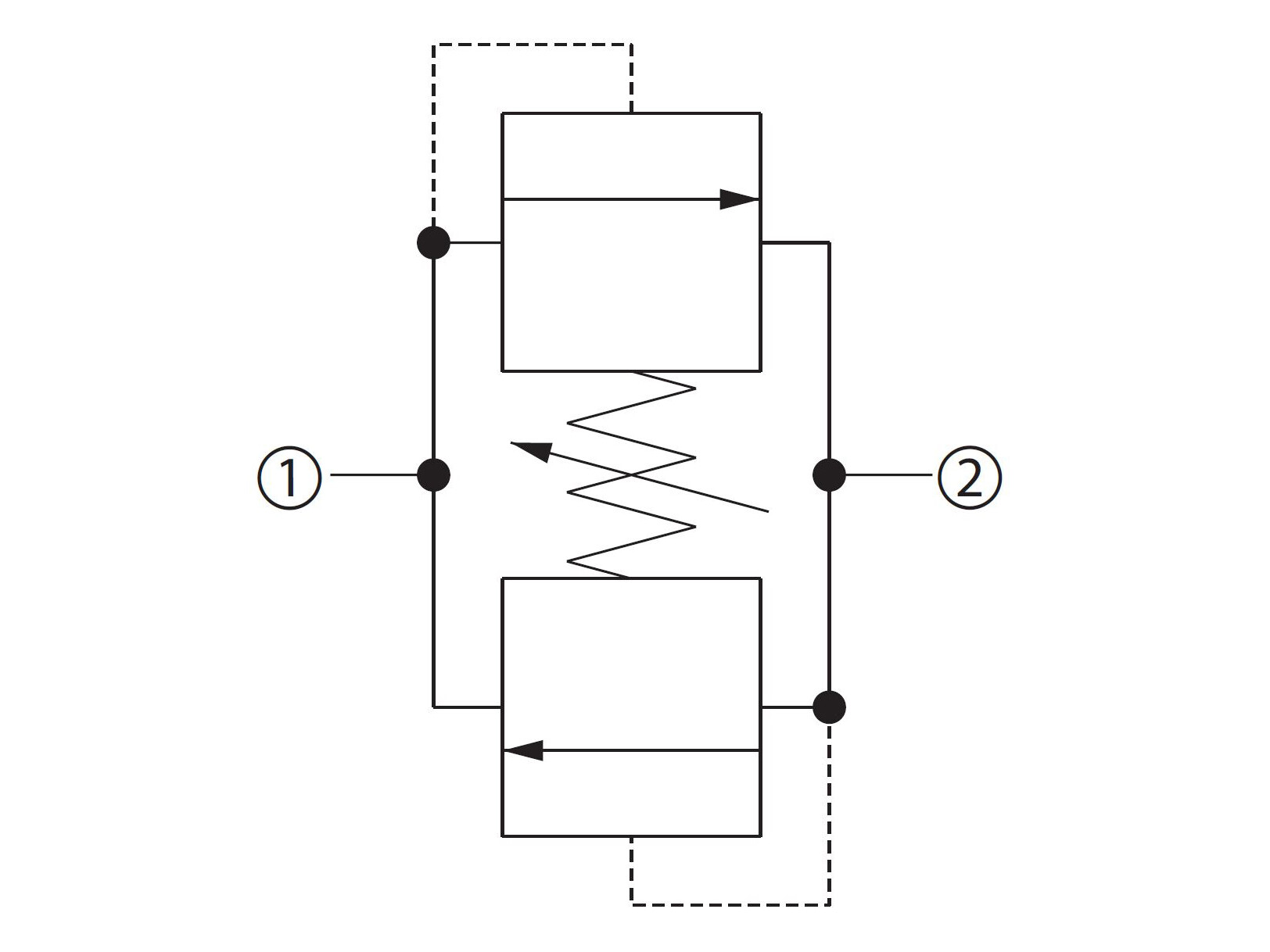

This is a bi-directional relief valve that relieves from port 1 to 2 and from port 2 to 1. It is ideal as a cross port relief valve protection for motor applications.

Varenummer:
131947.000
Pakke str.:
1 pcs
Min. bestillingsenhed er:
1 pcs
Mix-N-Match Dual Cross Body 1/2"DCP10-2-4B
Artikelnummer: 11135684
Dubbelt parallellt ventilhus 1/2" DPL10-2-4B
Artikelnummer: 11137221
Ventilhus SDC10-2-S3B stål 3/8" port
Artikelnummer: 11143048
Ventilhus SDC10-2-S4B stål 1/2" port
Artikelnummer: 11143049
Ventilhus Comatrol SDC10-2--LG14B (1/2)
Artikelnummer: 922514110
Housing SDC10-2--LG24B (1/2)
Artikelnummer: 922514210
HOUSING, SDC10-2-DG3B (3/8) SDC10-2-DG3B (3/8)
Artikelnummer: 922516910
HOUSING, SDC10-2-DG4B (1/2) SDC10-2-DG4B (1/2)
Artikelnummer: 922517010
KIT SEAL - BUNA-N #
Artikelnummer: 120073
Brand Name
Danfoss
Cavity
SDC10-2
Contamination level max.
20/18/14 - ISO 4406
Flow rate nominal LMin
40 lpm
Key size
25.4 mm
Model code
CP200-7-B-0-E-C-XXX
Oil viscocity recommended
12 - 54 cSt
Pressure max.
250 bar
Pressure setting max.
250 bar
Pressure setting min.
41 bar
Sealing material
NBR
Torque tightening
41-47 Nm
Förpackningsstorlek
1 pcs
Streckkod
5704334840749
Bruttovikt
Kg
Nettovikt
Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010

CP200-7, Relief Valve, Differential Area, Poppet Type, Bi-directional

This is a bi-directional relief valve that relieves from port 1 to 2 and from port 2 to 1. It is ideal as a cross port relief valve protection for motor applications.

Product datasheet
