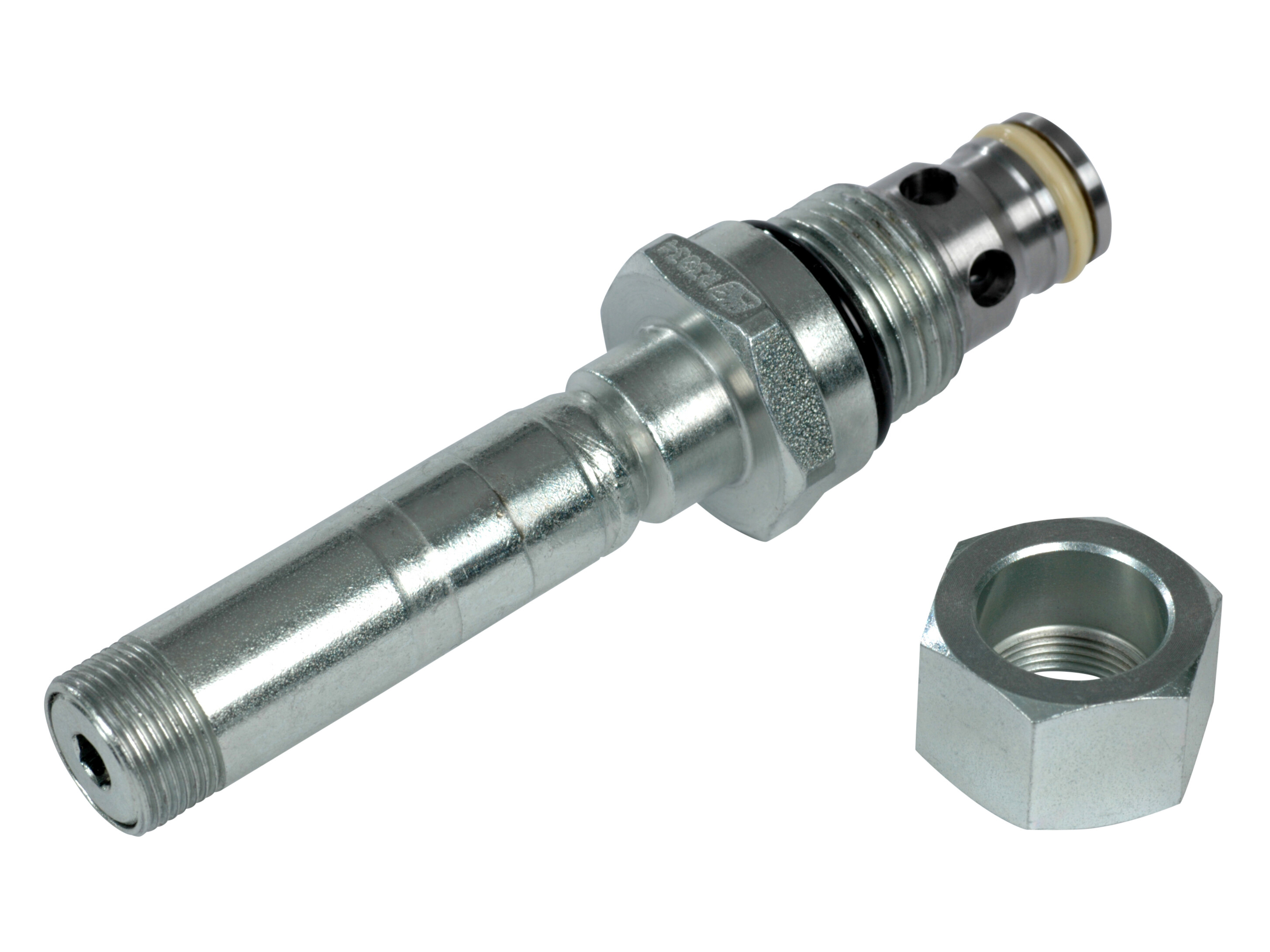

    Solenoid Valve 65l/m NO HSVP10-NO-00-00-PN-P-00

    This is a normally open, pilot-operated, poppet-type 10-size solenoid valve. When de-energized, the HSVP10-NO severely restricts flow from port 1 to port 2, while allowing flow from port 2 to 1. When energized, the valve’s poppet is shifted to block flow from port 2 to port 1 and allow reverse flow between port 1 to port 2 at a high pressure drop. This valve comes standard with a push pin type manual override. Applications: This valve is designed for use for uni-directional blocking, load holding, clamping or gripping applications in hydraulic circuits where low internal leakage is required.

    Artikelnummer:
    11133304
    Förpackningsstorlek:
    0 pcs
    Minsta beställningskvantitet:
    1 pcs
    Coil H16-24D-29W-FL-DB
    Varenummer: 11039515
    Coil H16-12D-29W-DE
    Varenummer: 11039516
    Coil H16-24D-29W-DE
    Varenummer: 11039517
    Coil H16-12D-29W-DE-DB
    Varenummer: 11039518
    Coil H16-24D-29W-DE-DB
    Varenummer: 11039519
    Mix-N-Match Dual Cross Body 1/2"DCP10-2-4B
    Varenummer: 11135684
    Mix-N-Match Dual Parallel Body 1/2"DPL10-2-4B
    Varenummer: 11137221
    Housing SDC10-2-S3B steel 3/8
    Varenummer: 11143048
    Housing SDC10-2-S4B steel 1/2 port
    Varenummer: 11143049
    Housing SDC10-2--LG14B (1/2)
    Varenummer: 922514110
    Housing SDC10-2--LG24B (1/2)
    Varenummer: 922514210
    HOUSING, SDC10-2-DG3B (3/8) SDC10-2-DG3B (3/8)
    Varenummer: 922516910
    Ventilhus SDC10-2-DG4B 1/2
    Varenummer: 922517010
    Activation
    Solenoid
    Brand Name
    Danfoss
    Cavity
    SDC10-2
    Contamination level max.
    20/18/14 - ISO 4406
    Filter built-in
    No
    Flow rate nominal LMin
    60 lpm
    Manual operated
    No
    Model code
    HSVP10-NO-00-00-PN-P-00
    Number of ways/positions
    2/2
    Oil viscocity recommended
    12 - 54 cSt
    Pressure max.
    350 bar
    Sealing material
    Polyurethane
    Solenoidtype
    H16
    Temperature max.
    +100 °C
    Temperature min.
    -40 °C
    Torque tightening
    70 Nm
    Valve type
    NO - Normally open
    Pakke str.
    0 pcs
    Stregkode
    5704334465034
    Brutto vægt
    0,18 Kg
    Netto vægt
    0,18 Kg
    Oprindelsesland
    ITA
    Intrastat varekode
    85051990

    This is a normally open, pilot-operated, poppet-type 10-size solenoid valve. When de-energized, the HSVP10-NO severely restricts flow from port 1 to port 2, while allowing flow from port 2 to 1. When energized, the valve’s poppet is shifted to block flow from port 2 to port 1 and allow reverse flow between port 1 to port 2 at a high pressure drop. This valve comes standard with a push pin type manual override. Applications: This valve is designed for use for uni-directional blocking, load holding, clamping or gripping applications in hydraulic circuits where low internal leakage is required.

    Product datasheet
