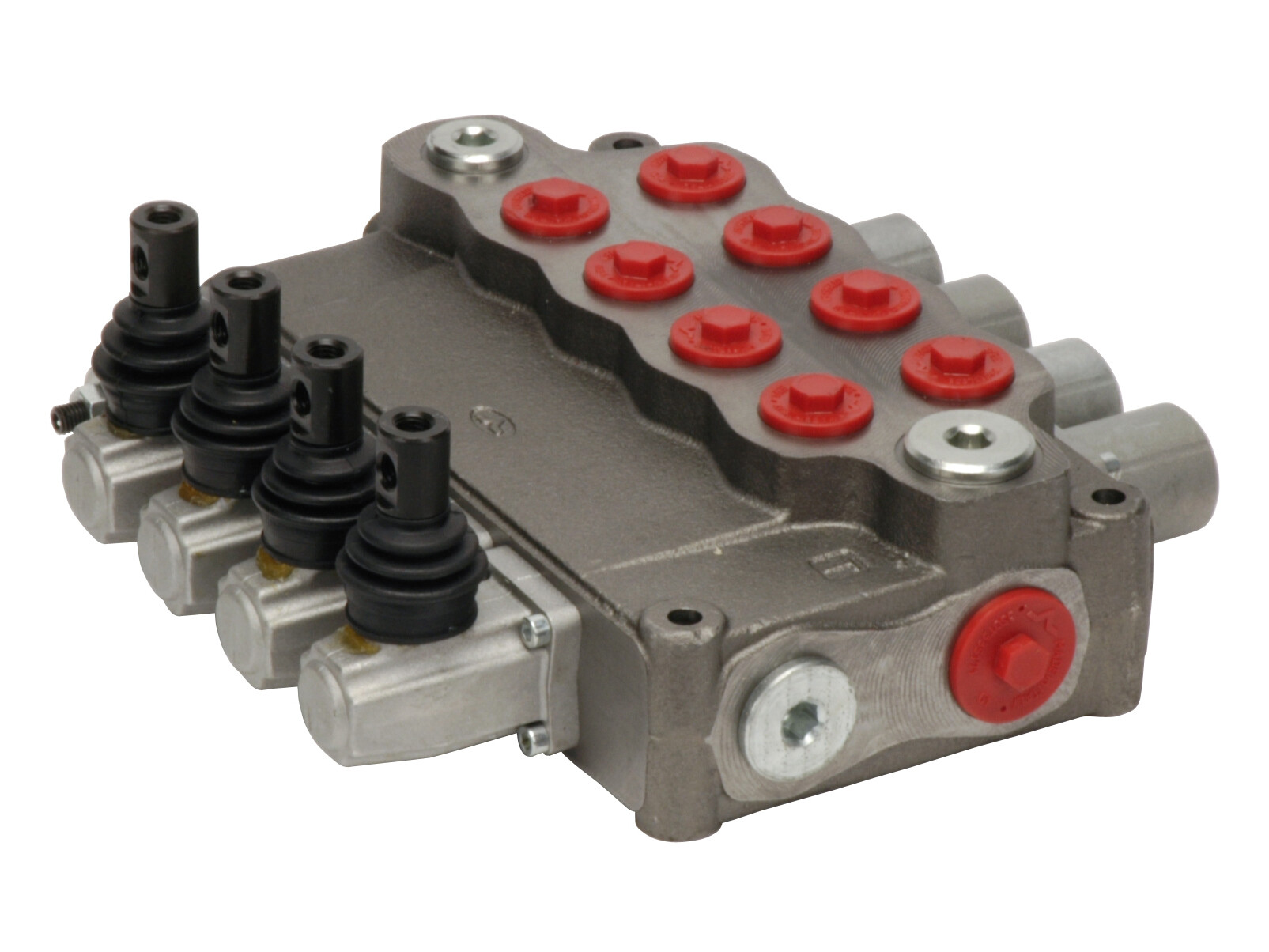

SD18/4-P(KG3-120)/18L/18L/18L/ 18L/AET directional valve

4-section SD18 monoblock directional valve with built-in pressure relief valve and 4 spools in parallel. Manually activated with handlevers.

Spool function: 4 x doubleacting with port A and B closed in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure caryy-over (port plugged).

Partnumber:
106411001

Package size:
0 pcs

Min. order quantity is:
1 pcs
Handlever AL01-M12x200 Walvoil
Artikelnummer: 170013020
SD18/AEK cavityplug for closed center
Artikelnummer: 3XTAP540560
O-ring
Artikelnummer: 24.99X3.53
SD25/L, lever housing M12 (Also for SD25)
Artikelnummer: 5LEV120000
SD18/8 spring return kit (Also for SD25)
Artikelnummer: 5V08120000
Brand Name
Walvoil

Contamination level max.
-/19/16 - ISO 4406

Flow rate nominal LMin
160 lpm

Lever
Exclusive

Material
Cast iron

Model code
SD18/4-P(KG3-120)/18L/18L/18L/18L/AET

Number of sections
4

Oil viscocity recommended
12 - 400 cSt

Port P1
G 3/4 BSP

Port P2
G 3/4 BSP

Port T1
G 1 BSP

Port T2
G 1 BSP

Pressure T max.
25 bar

Pressure carry-over
No

Pressure max.
250 bar

Pressure relief valve
Yes

Pressure setting max.
200 bar

Pressure setting min.
63 bar

Working ports
G 3/4 BSP
Förpackningsstorlek
0 pcs

Streckkod
5704334153030

Bruttovikt
35,00 Kg

Nettovikt
35,00 Kg

Ursprungsland
ITA

Intrastat artikelkod
84812010

4-section SD18 monoblock directional valve with built-in pressure relief valve and 4 spools in parallel. Manually activated with handlevers.

Spool function: 4 x doubleacting with port A and B closed in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure caryy-over (port plugged).
