Adaptor 11/16 ORFS x 12mm
\ufeff
-

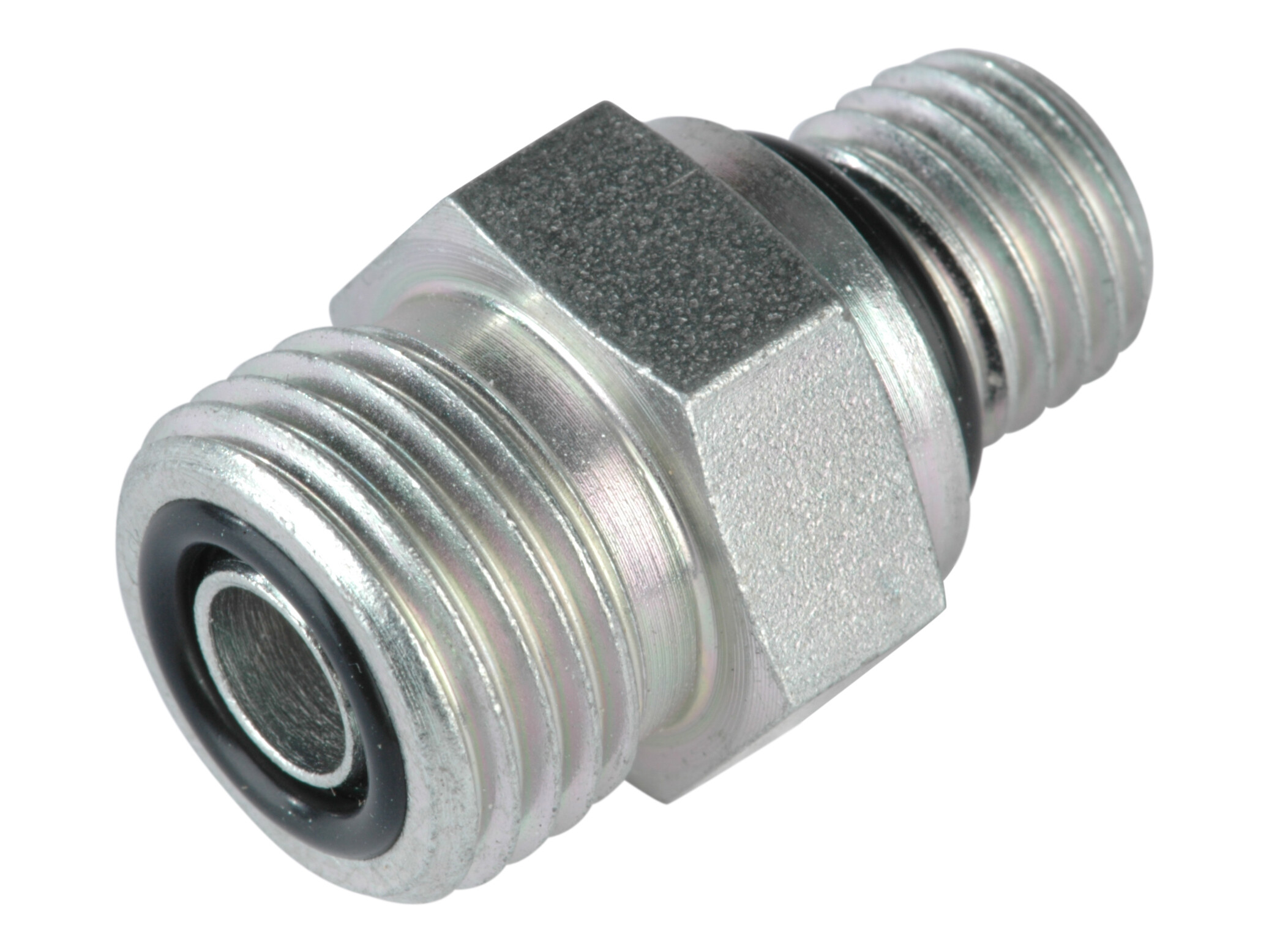

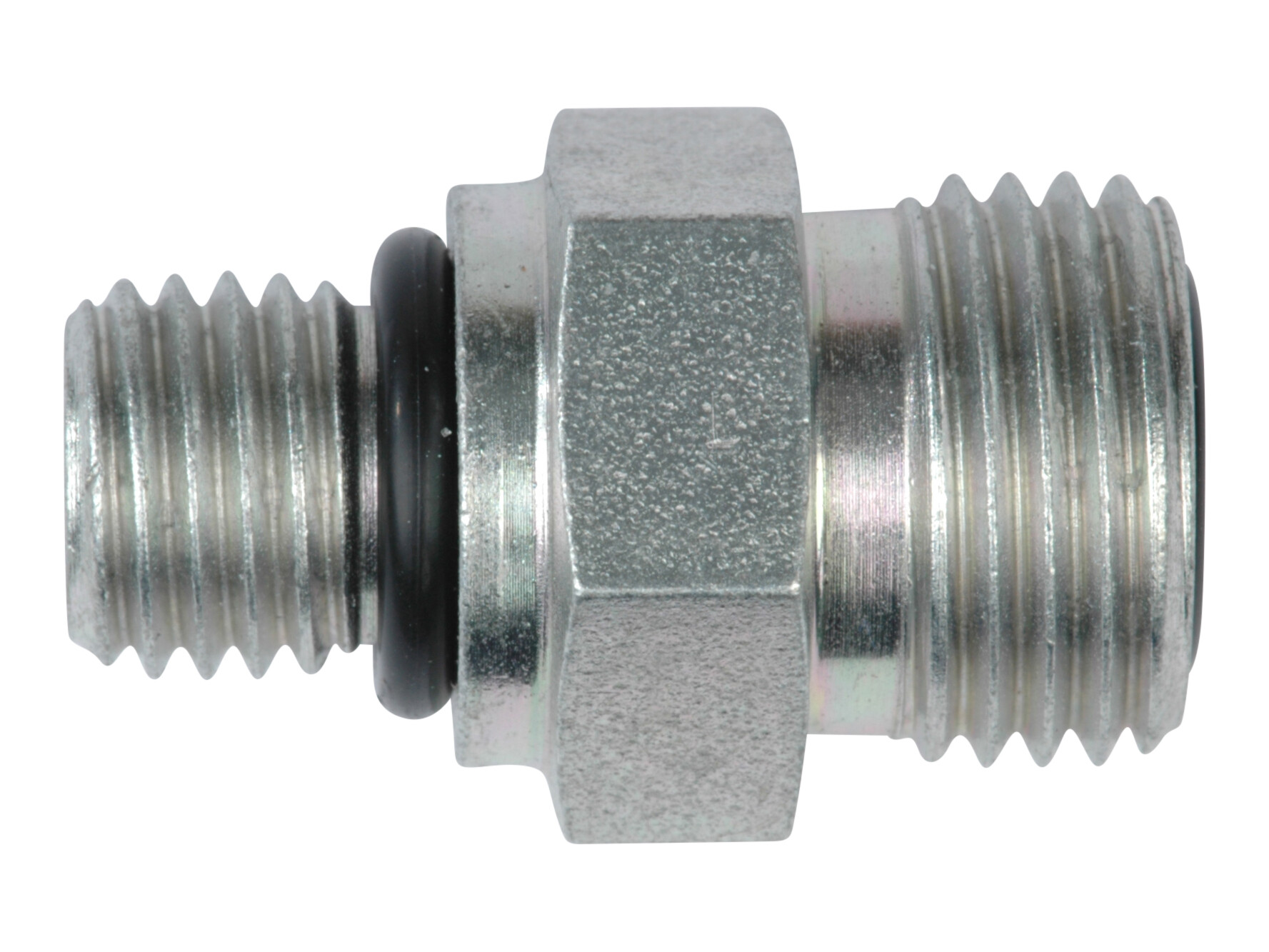

ORFS straight external threaded basic connector
- External thread metric
- With O-ring NBR Shore 85 +5/0 (no support ring)
- ISO 6149 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
103FM0612
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
A
32 mm
Angle
0 °
B
11 mm
Brand Name
FOR
CH
19 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
11 mm
F
11/16-16 ORFS
F1
M12x1.5
Material
Steel
Model code
SA502058/1012
Pressure max.
630 bar
Sealing material
NBR
Standard ISO
ISO 6149
Surface treatment
Electro-galvanized / White chromatized
T
8-10 mm
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
11/16-16 ORFS
Thread outer metric
M12x1,5
Förpackningsstorlek
0 pcs
Streckkod
5704295803463
Bruttovikt
0,04 Kg
Nettovikt
0,04 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
\ufeff
-
ORFS straight external threaded basic connector
- External thread metric
- With O-ring NBR Shore 85 +5/0 (no support ring)
- ISO 6149 - for threaded ports
- Operating temperature -20° to +120°
