Adaptor 3/4 BSP x 1" ORFS
\ufeff
-

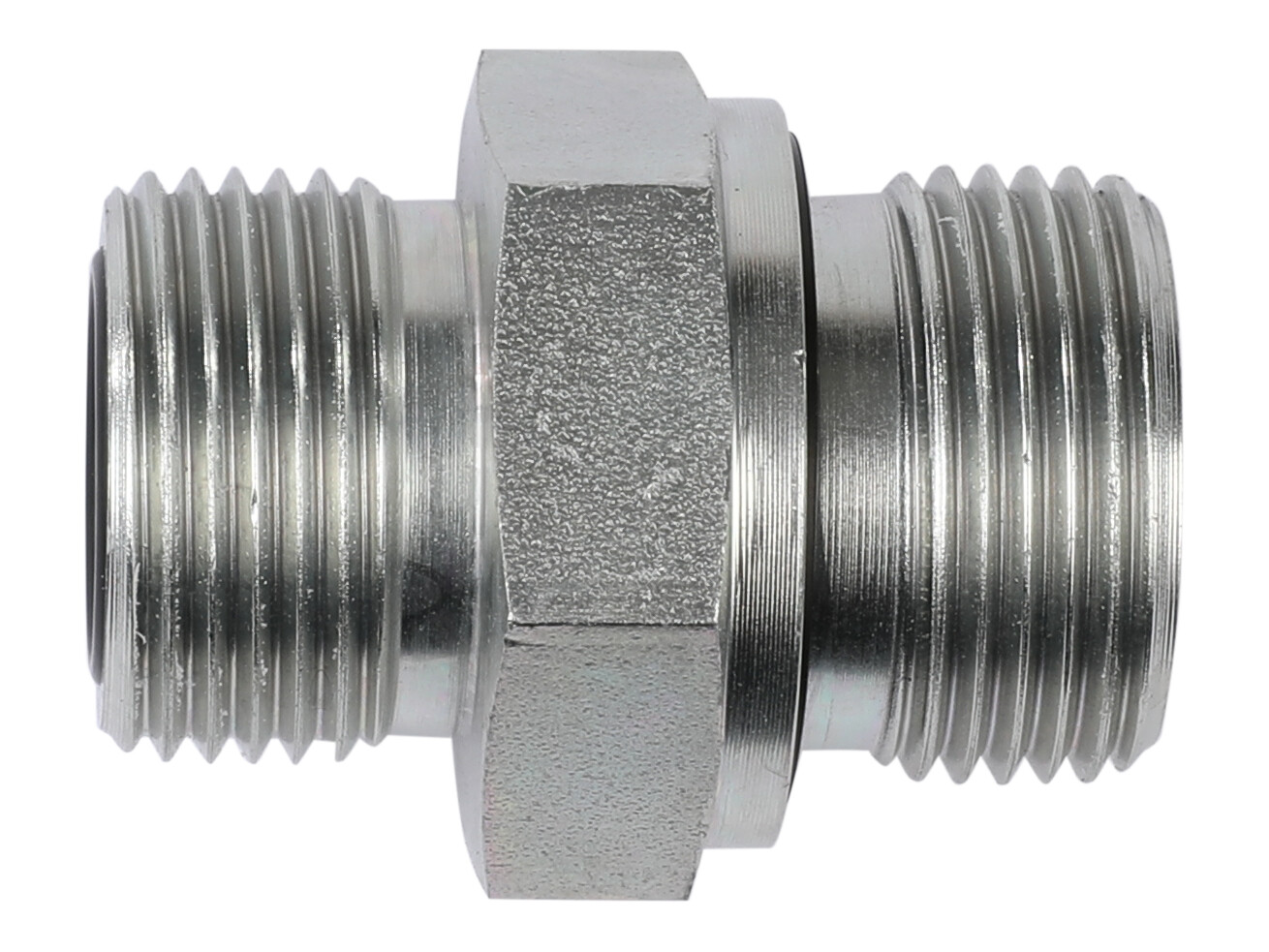

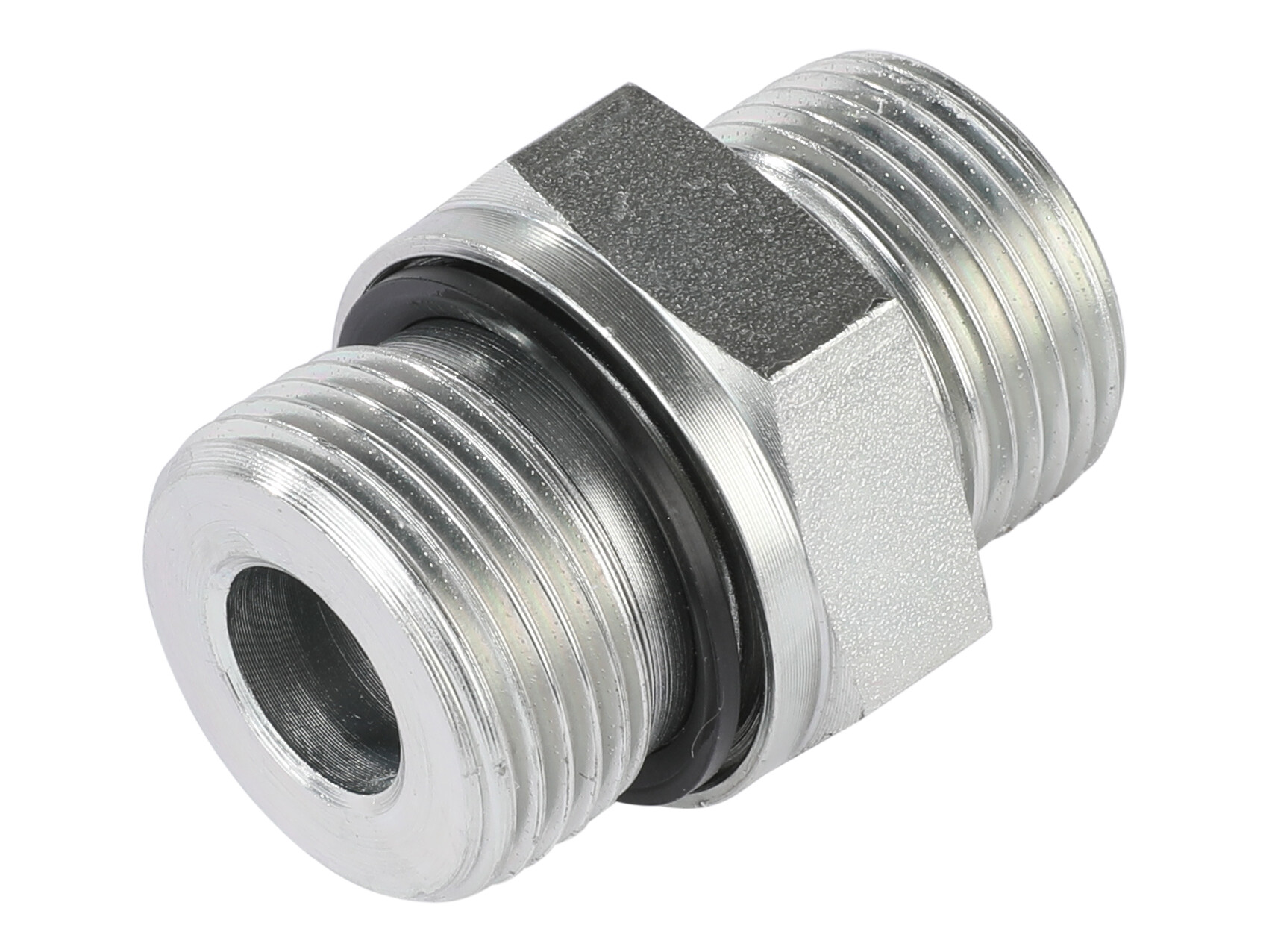

ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Varenummer:
103FB1210
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
A
44,5 mm
Angle
0 °
B
15,5 mm
Brand Name
FOR
CH
32 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
16 mm
F
1-14 ORFS
F1
G 3/4 BSP
Material
Steel
Model code
A502146/1626
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
14-15-16 mm
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
1-14 ORFS
Thread outer
G 3/4 BSP
Pakke str.
0 pcs
Stregkode
5704334584292
Brutto vægt
0,16 Kg
Netto vægt
0,16 Kg
Oprindelsesland
ITA
Intrastat varekode
73071110
\ufeff
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Bemærk: Åbning af 3D-filer kræver et program der understøtter fil-formatet
