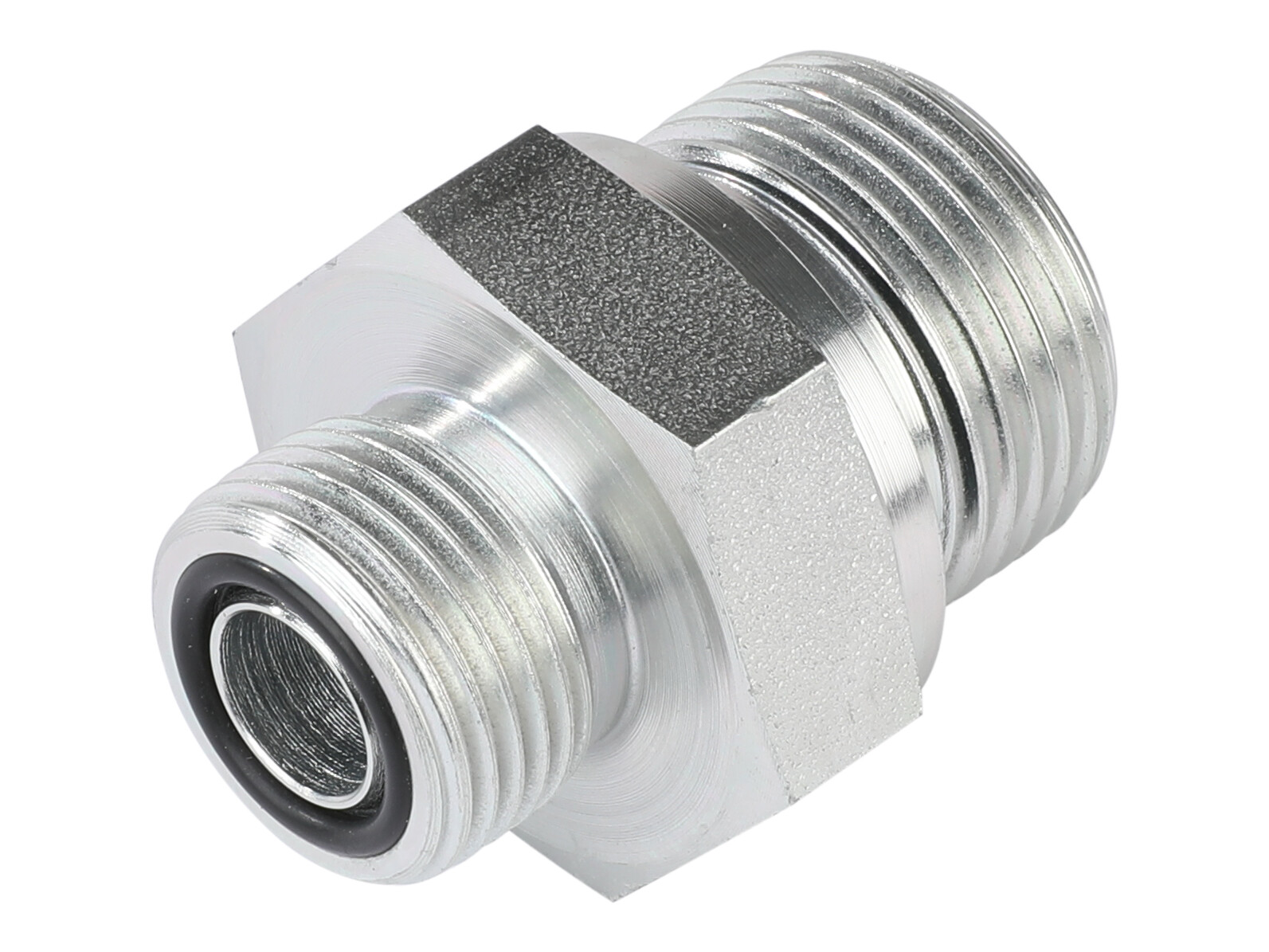

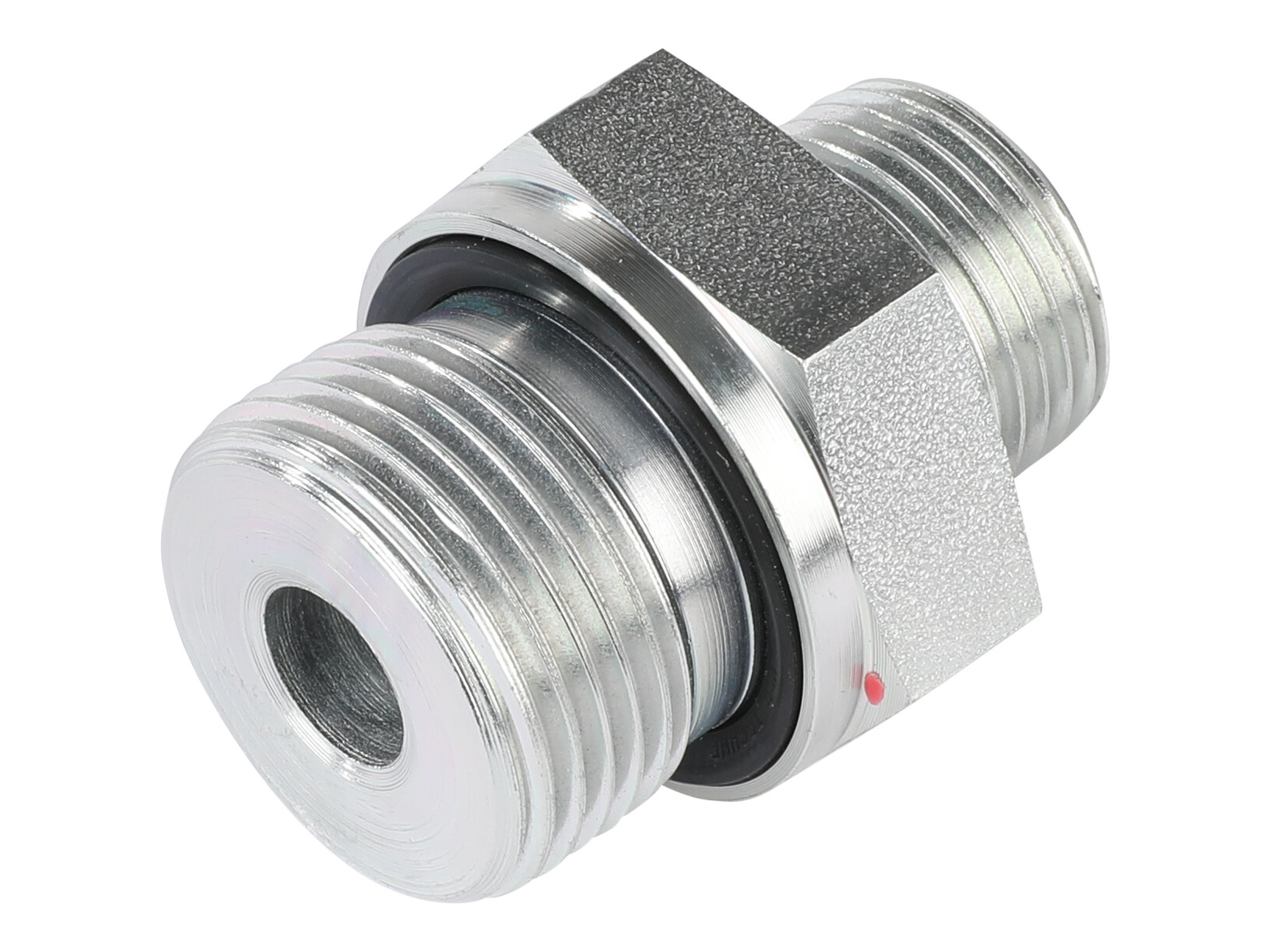

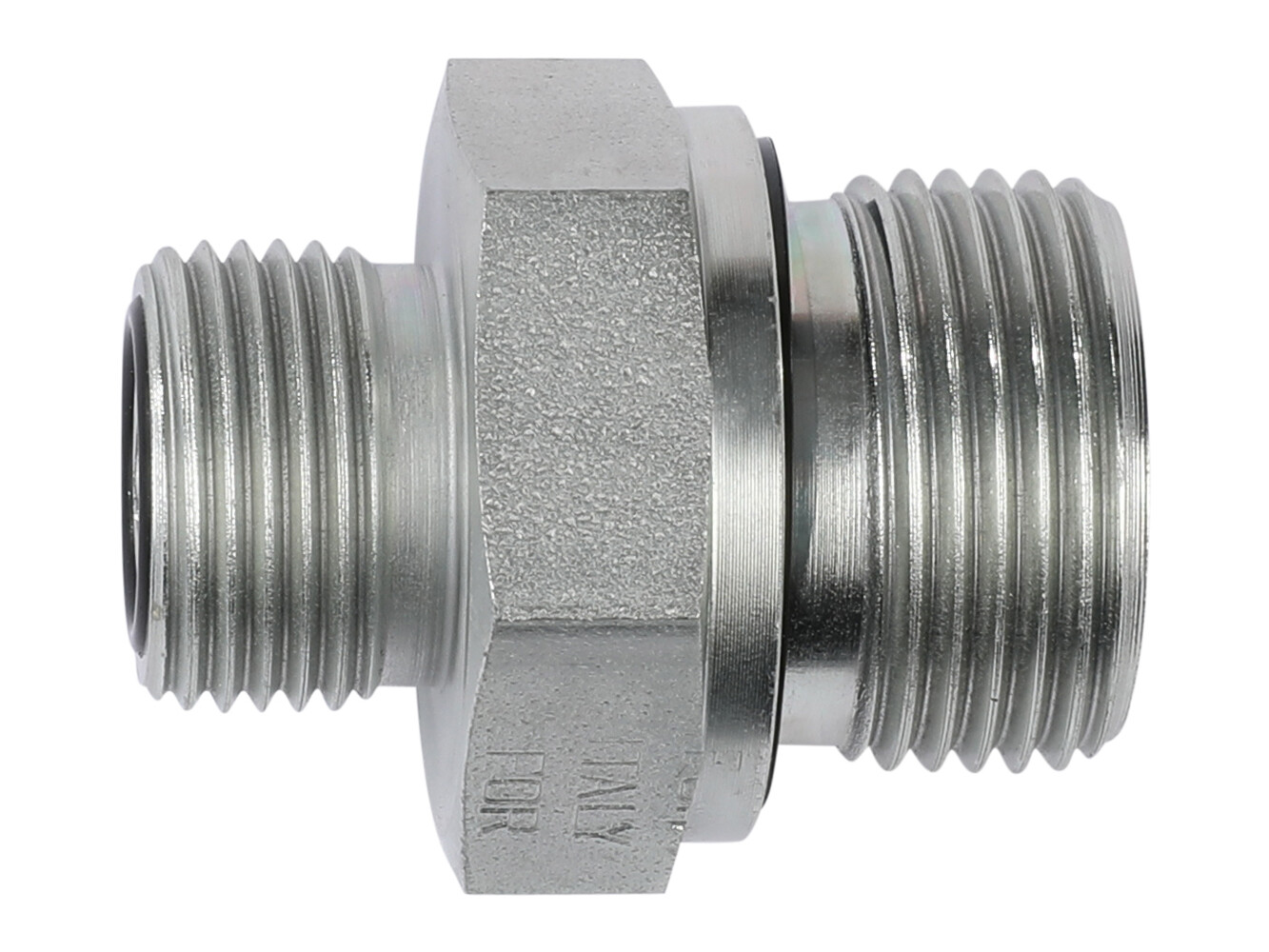

Adaptor 3/4 BSP x 13/16" ORFS
\ufeff
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Artikelnummer:
103FB1208
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
A
42 mm
Angle
0 °
B
13 mm
Brand Name
FOR
CH
32 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
16 mm
F
13/16-16 ORFS
F1
G 3/4 BSP
Material
Steel
Model code
SA502146/1226
Pressure max.
350 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
T
12 mm
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread outer
13/16-16 ORFS
Thread outer
G 3/4 BSP
Package size
0 pcs
Barcode
5704334584230
Gross weight
0,15 Kg
Net weight
0,15 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
ORFS straight external threaded basic connector
- External thread (BSPP)
- With ED seal NBR Shore-A 85 \u200b\u200b+5/0
- ISO 1179 - for threaded ports
- Operating temperature -20° to +120°
Note: Opening 3D files requires a program that supports the file format
