SD5/4-P(KG3-120)/28L/28L/28L/ 28L/AET, Walvoil

SD5/4-P(KG3-120)/28L/28L/28L/ 28L/AET, Walvoil

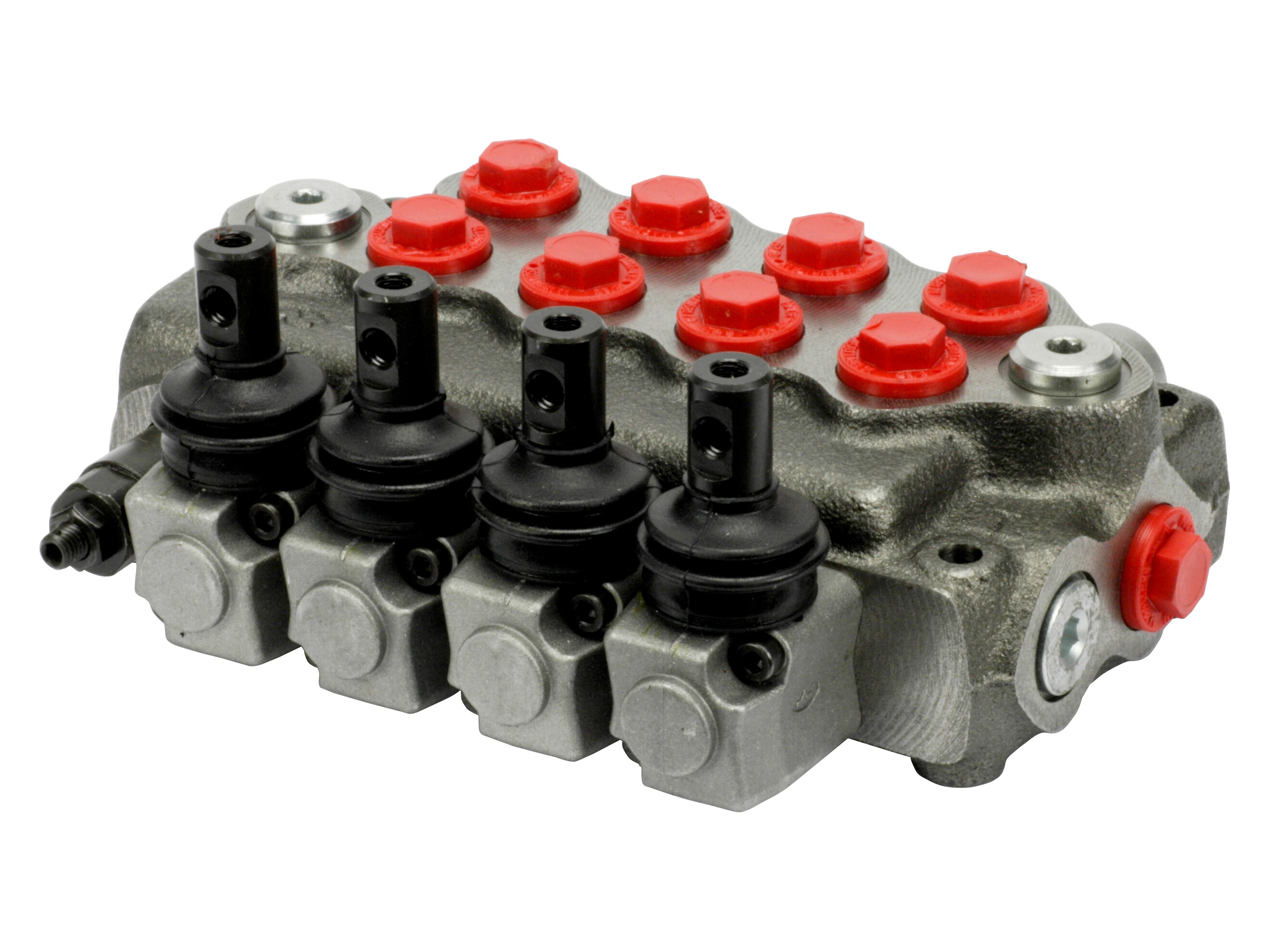

4-section SD5 monoblock valve with built-in pressure relief valve and 4 spools in parallel. Manually activated with handlevers.

Spool function: 4 x double acting with port A and B to T in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure carry-over (port closed).

Partnumber:

102411035

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifikationer
Dimensioner og forsendelse

Brand Name

Walvoil

Contamination level max.

-/19/16 - ISO 4406

Flow rate nominal LMin

45 lpm

Lever

Exclusive

Material

Cast iron

Model code

SD5/4-P(KG3-120)/28L/28L/28L/28L/AET

Number of sections

Oil viscocity recommended

12 - 400 cSt

Port P

G 3/8 BSP

Port T

G 3/8 BSP

Pressure T max.

25 bar

Pressure carry-over

Pressure max.

315 bar

Pressure relief valve

Yes

Pressure setting max.

200 bar

Pressure setting min.

63 bar

Working ports

G 3/8 BSP

Pakke str.

0 pcs

Stregkode

5704334145301

Brutto vægt

8,35 Kg

Netto vægt

8,35 Kg

Oprindelsesland

ITA

Intrastat varekode

84812010

Produkt information

4-section SD5 monoblock valve with built-in pressure relief valve and 4 spools in parallel. Manually activated with handlevers.

Spool function: 4 x double acting with port A and B to T in neutral position. Spring centered.

Open center P to T in neutral position.

AET = Prepared for pressure carry-over (port closed).
