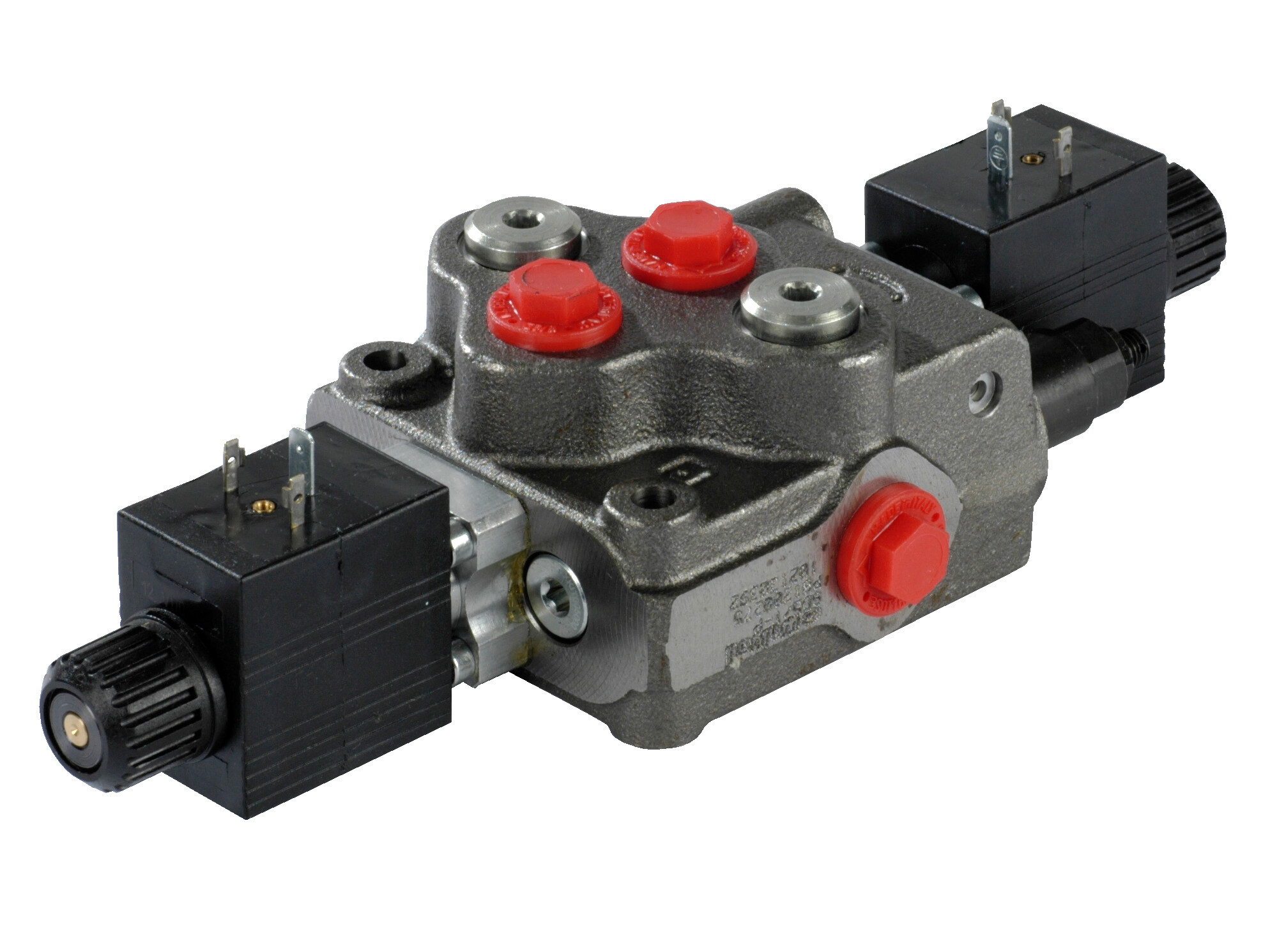

SD5/1-P(JG3-120)/18ES3/AET
1 section SD5 monoblockvalve with built-in pressure relief valve. Solenoid acticated spool (12 Vdc)
Spool function: Double acting with port A and B closed in neutral position. Spring centered. solenoid function: On/Off.
Open center port P to T in neutral position.
Artikelnummer:
102130392
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Brand Name
Walvoil
Contamination level max.
-/19/16 - ISO 4406
Current type
DC
Flow rate nominal LMin
45 lpm
Lever
Exclusive
Material
Cast iron
Model code
SD5/1-P(JG3-120)/18ES3/AET-12VDC
Number of sections
1
Oil viscocity recommended
12 - 400 cSt
Port P
G 3/8 BSP
Port T
G 3/8 BSP
Pressure T max.
25 bar
Pressure carry-over
No
Pressure max.
315 bar
Pressure relief valve
Yes
Pressure setting max.
200 bar
Pressure setting min.
50 bar
Voltage
12 V
Working ports
G 3/8 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334252009
Bruttovikt
4,40 Kg
Nettovikt
4,40 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
1 section SD5 monoblockvalve with built-in pressure relief valve. Solenoid acticated spool (12 Vdc)
Spool function: Double acting with port A and B closed in neutral position. Spring centered. solenoid function: On/Off.
Open center port P to T in neutral position.
