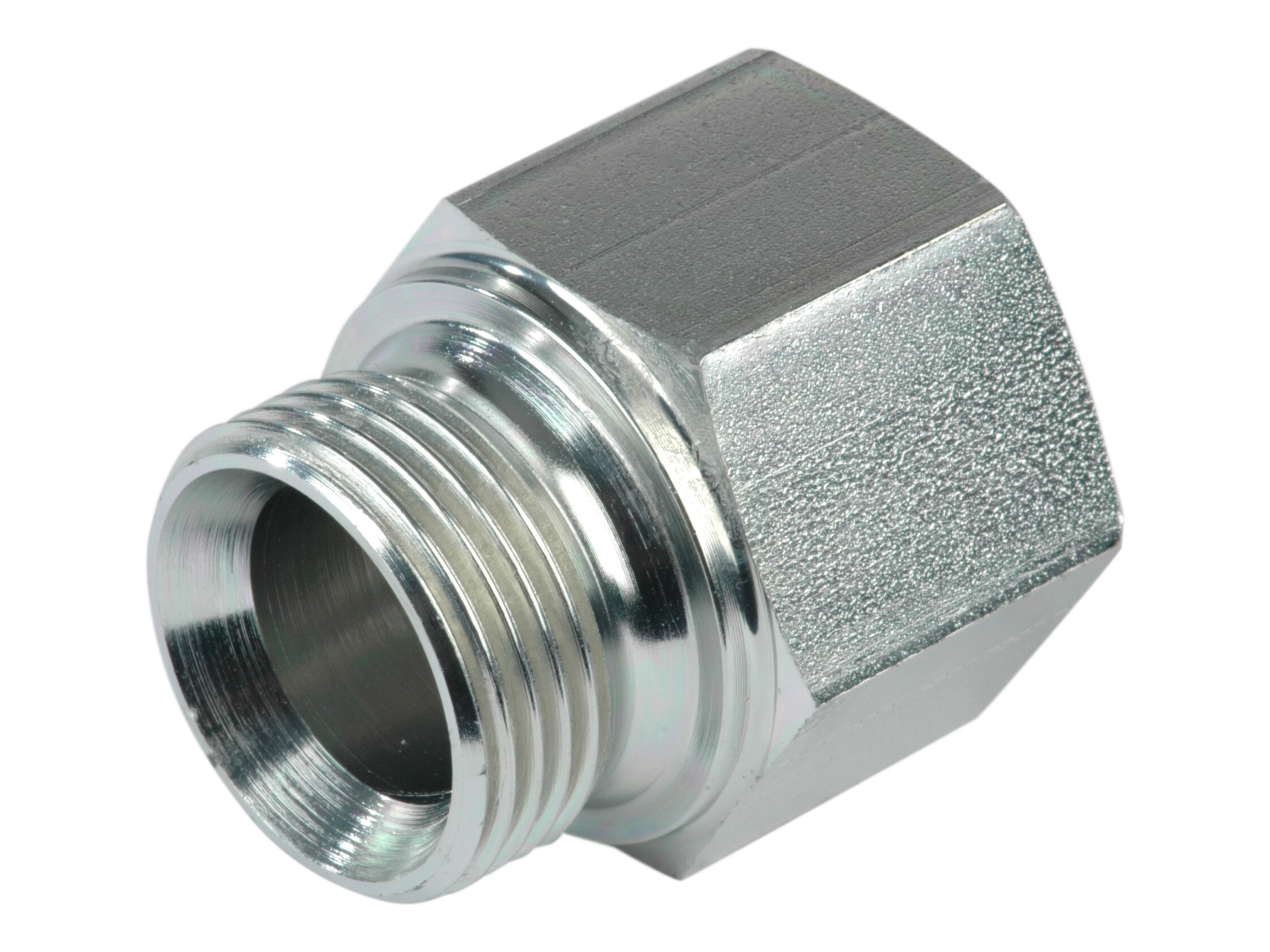

BSP bushing - fixed Equal dim. 1' x 1'
N.muffe, stål, type FMBCBC BSP x BSP, dim. 1" M x 1" f Dim. 1"m x 1"f"
Partnumber:
09BP1616
Package size:
0 pcs
Min. order quantity is:
1 pcs
Brand Name
I.M.M Hydraulics
Dimension CH1
41 mm
Dimension L
50 mm
Dimension L2
19 mm
Material
Steel
Pressure max.
200 bar
Surface treatment
Electro zinc plated
Temperature max.
+120 °C
Temperature min.
-40 °C
Thread F (See drawing)
G 1 - BSP
Thread F1 (See drawing)
G 1 - BSP
Thread inner
G 1 BSP
Thread outer
G 1 BSP
Förpackningsstorlek
0 pcs
Streckkod
5704334210788
Bruttovikt
0,23 Kg
Nettovikt
0,23 Kg
Ursprungsland
ITA
Intrastat artikelkod
73071110
N.muffe, stål, type FMBCBC BSP x BSP, dim. 1" M x 1" f Dim. 1"m x 1"f"
