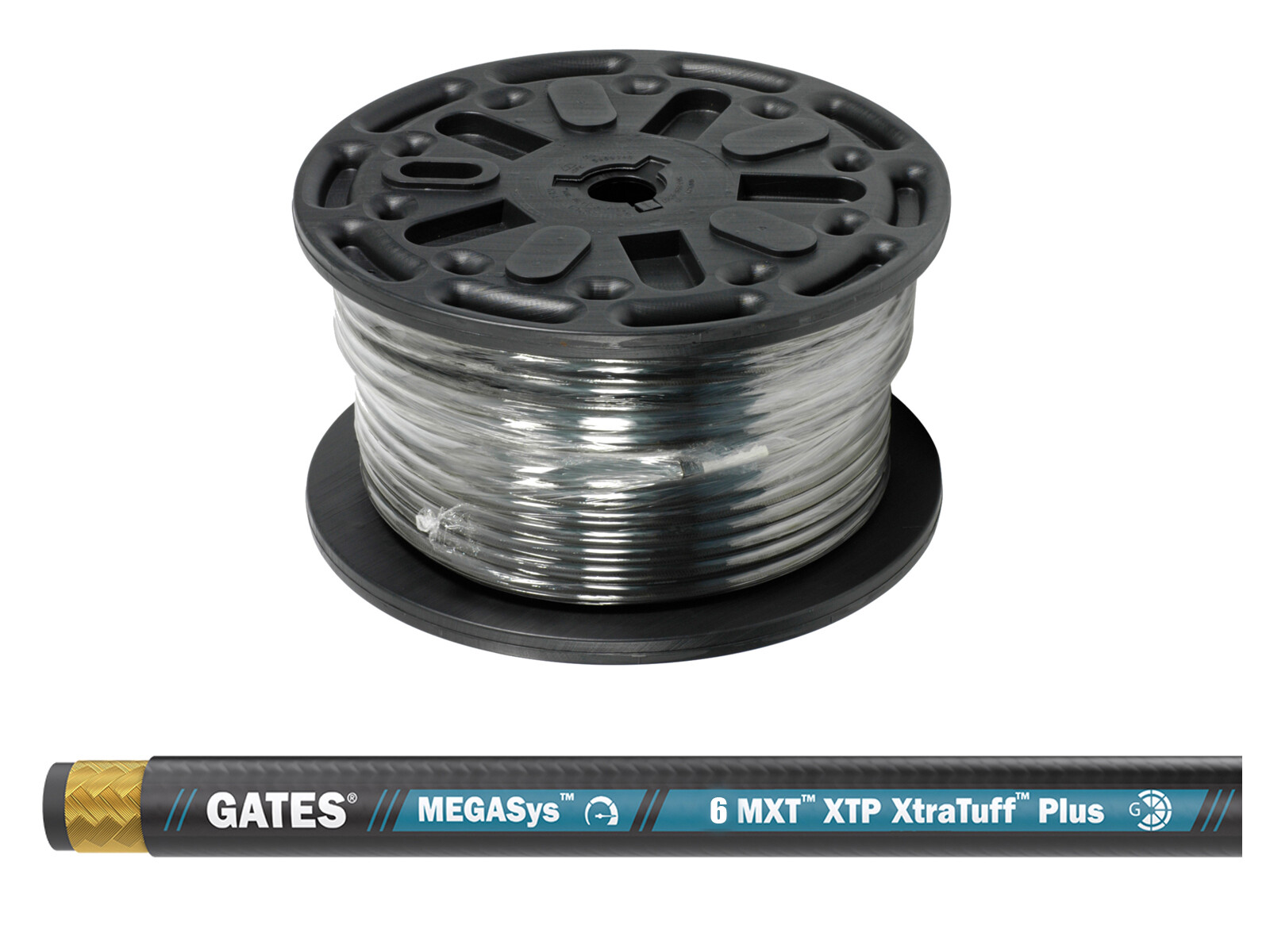

3/8" Hydraulic hose MxT-XTP - 330 bar - 100 mtr plastreel

MXT-XTP Superpac Braided - SAE 100R16 - XtraTuff™ Plus outer surface MXT-XTP has all the same features as MXT, but with the addition of XtraTuff™ Plus outer surface, which offers 25 times the abrasion resistance of the standard, plus improved ozone resistance.

MXT-XTP is designed to meet the changing application challenges of our customers. By leveraging material science and process innovation combined with patent-pending design, Gates offers a hydraulic solution that is lighter, stronger and more flexible. All the same features as the MXT, plus an abrasion and ozone resistant outer surface. Tested to 600,000 pulse cycles, 3 times the industry standard. More flexible, requiring up to 40% less bending force, making installation faster and more ergonomic.

Multi-purpose solution meets SAE 100R16, ISO 11237 R16 and EN857 2SC performance standards. XtraTuff™ Plus coating provides 25 times the abrasion resistance of standard coatings and ozone resistance. Compatible with Gates MegaCrimp™ connectors and Gates Crimpers for a complete hydraulic system solution. Meets MSHA flame resistance. Patented in the USA.

Varenummer:
06MXT-XTP-RL100

Pakke str.:
100 m

Min. bestillingsenhed er:
100 m
Anvendelsesområde
Diesel, Grease, Oil

Bøjningsradius
65 mm

Diameter udvendig
17.1 mm

Flammeresistent
Yes

Forstærkning
1 layer steel wire braid

Inderrør
NBR (Nitrile)

Meter pr. rulle
100 m

Model kode
6MXT-XTPxRL100

Mærke navn
Gates

REACH compliant
Yes

RoHs compliant
Yes

Slangegodkendelser
MSHA

Slangestørrelse
3/8 "

Standard EN
EN 857 2SC

Standard ISO
ISO 11237 R16

Standard SAE
SAE 100R16

Temperatur maks.
+100 °C

Temperatur min.
-40 °C

Tryk maks.
330 bar

Tryk sprængning min.
1320 bar

Yderrør
Synthetic rubber
Förpackningsstorlek
100 m

Streckkod
5704334930112

Bruttovikt
Kg

Nettovikt
Kg

Ursprungsland
pol

Intrastat artikelkod
40092100
