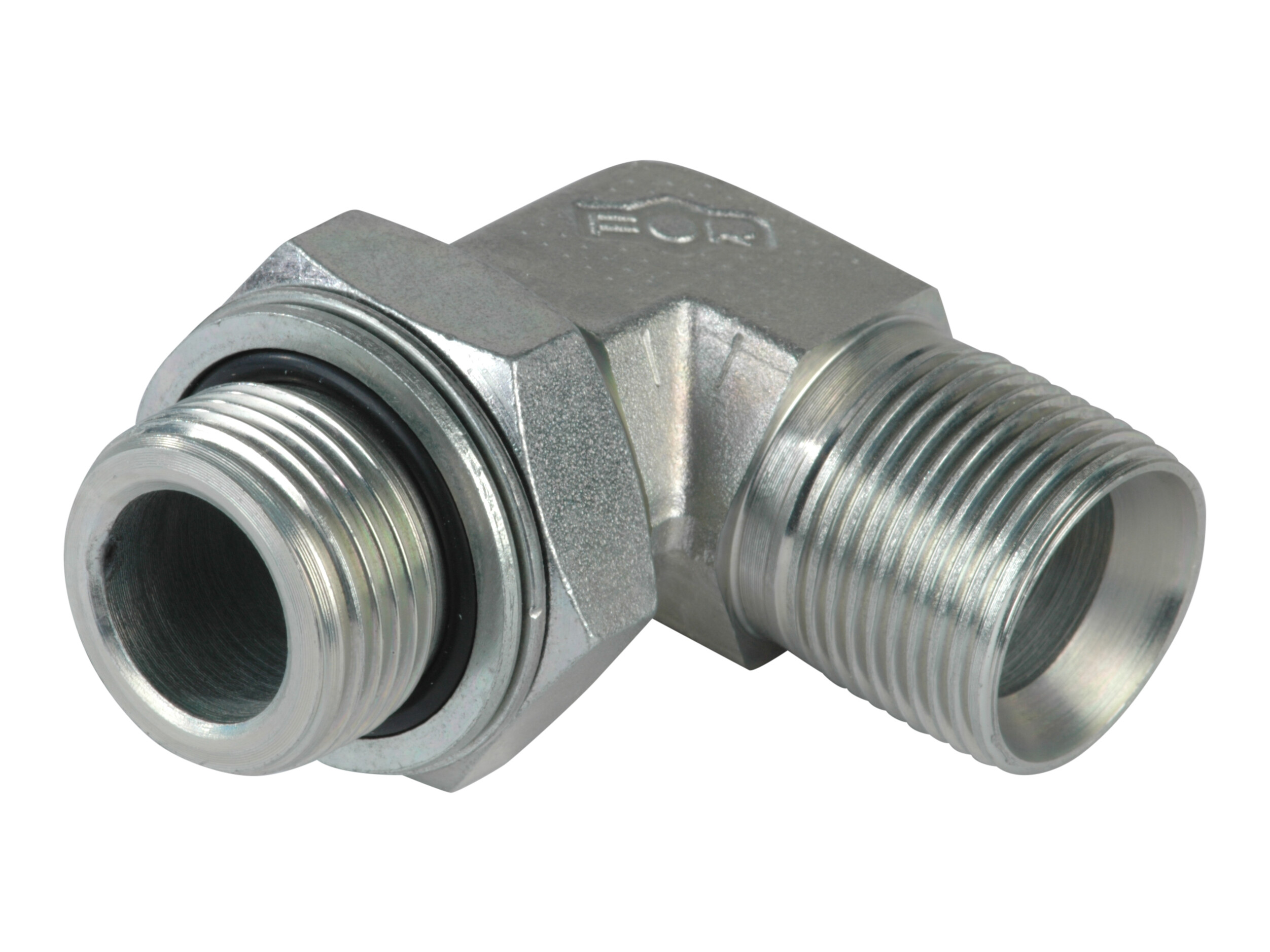

Adjustable elbow 3/4 BSPx3/4 B
\ufeff
-
BSP 90° directional basic connector
- External thread (BSPP)
- External thread (BSP 60° sealing with cone)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature
Partnumber:
06BB1212
Package size:
0 pcs
Min. order quantity is:
1 pcs
Angle
90 °
B
41 mm
Brand Name
FOR
CH
36 mm
Corrosion resistance
1400 hours salt spray DIN EN ISO 9227
D
50 mm
Material
Steel
Model code
A207030/2626
Pressure max.
250 bar
Sealing material
NBR
Standard ISO
ISO 1179
Surface treatment
Electro zinc plated
Temperature max.
+120 °C
Temperature min.
-20 °C
Thread F (See drawing)
G3/4 - BSP
Thread F1 (See drawing)
G3/4 - BSP
Thread outer
G 3/4 BSP
d
50 mm
Package size
0 pcs
Barcode
5704334061809
Gross weight
0,28 Kg
Net weight
0,28 Kg
Country of origin
ITA
Intrastat code
73071110
\ufeff
-
BSP 90° directional basic connector
- External thread (BSPP)
- External thread (BSP 60° sealing with cone)
- O-ring, NBR Shore 85 +5/0 and support ring
- ISO 1179 - for threaded ports
- Operating temperature
