Q25M/2-F1S-2X103/A1/M1-F3D

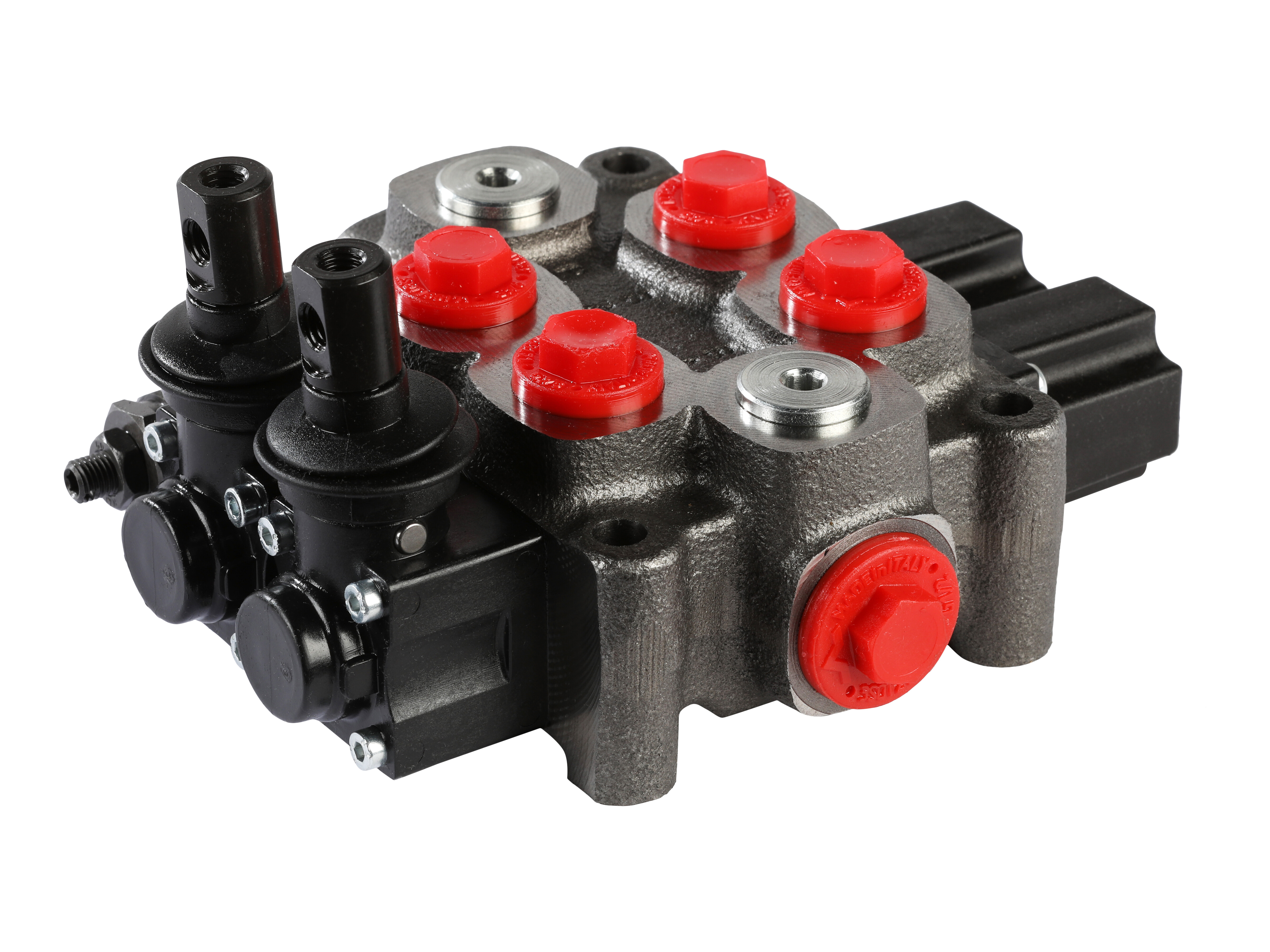

2-section Q25 monoblock directional valve with built-in pressure relief valve. Manually activated
Spool function: 2 x double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
Artikelnummer:
025-2001
Förpackningsstorlek:
0 pcs
Minsta beställningskvantitet:
1 pcs
Antal sektioner
2
Arbejdsporte
G 3/8 BSP
Flow Nominel
30 lpm
Forureningsgrad maks.
16/14/12 - ISO 4406
Håndtag
Exclusive
Materiale
Cast iron
Model kode
Q25M/2-F1S-2X103/A1/M1-F3D
Mærke navn
Walvoil
Olieviskositet anbefalet
10 - 400 cSt
Port P1
G 3/8 BSP
Port P2
G 3/8 BSP
Port T1
G 1/2 BSP
Port T2
G 3/8 BSP
Temperatur maks.
+80 °C
Temperatur min.
-30 °C
Tryk T maks.
25 bar
Tryk maks.
300 bar
Trykbegrænsningsventil
Yes
Trykindstilling maks.
280 bar
Trykindstilling min.
30 bar
Trykvidereføring
No
Förpackningsstorlek
0 pcs
Streckkod
5704295201344
Bruttovikt
4,33 Kg
Nettovikt
4,33 Kg
Ursprungsland
ITA
Intrastat artikelkod
84812010
2-section Q25 monoblock directional valve with built-in pressure relief valve. Manually activated
Spool function: 2 x double acting with port A and B closed in neutral position. Spring centered.
Open center port P to T in neutral position.
