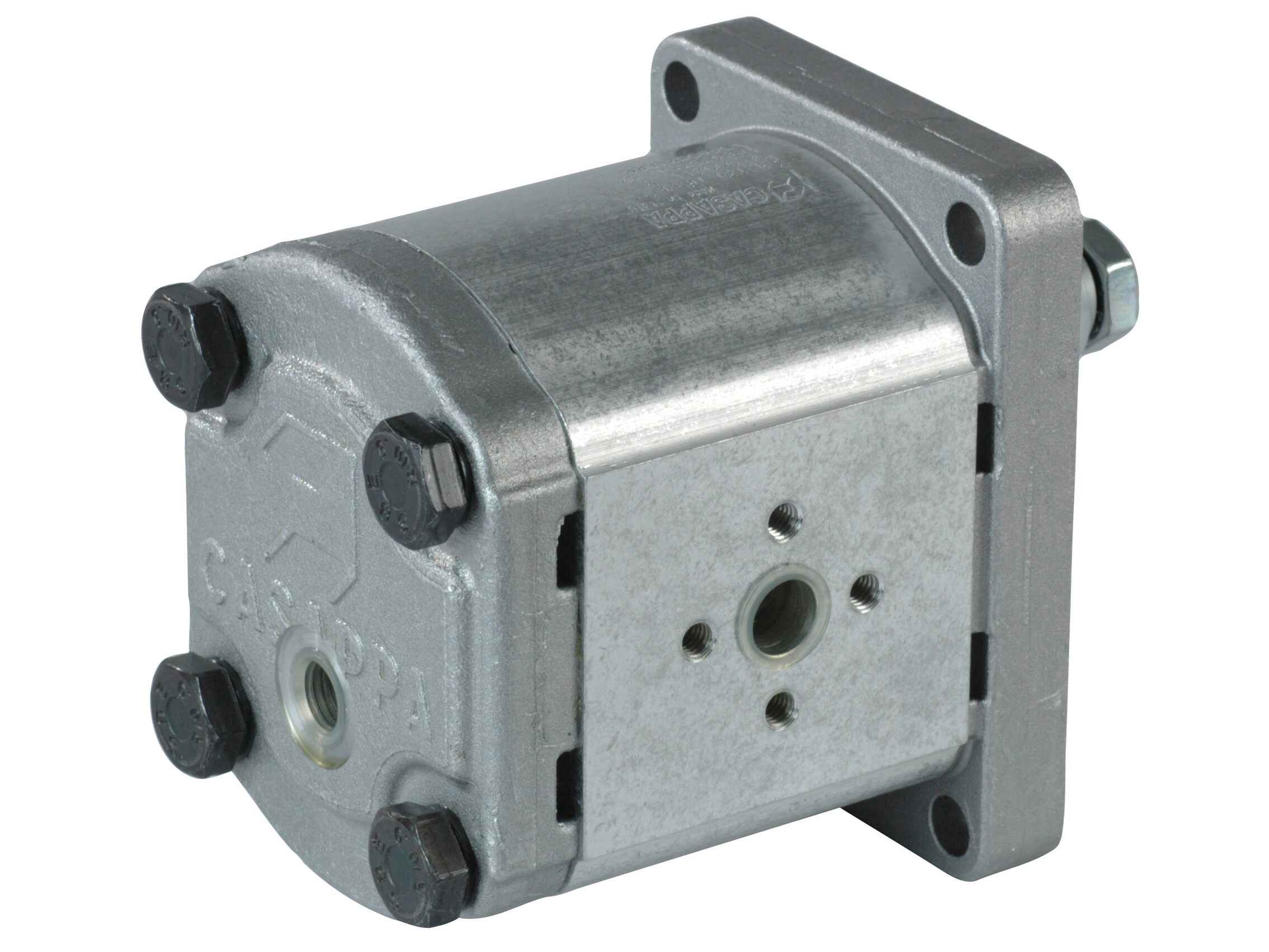

PLM20.25R0-82E2-LEA/EB-N-EL-DH Polaris motor, Casappa
Casappa Polaris, series 2 gear motor..
Housing: Aluminium..
Gear wheels with slide bearings and two aluminium end plates..
Front- and rear cover: Aluminium.
Connection flanges must be ordered separately.
Varenummer:
01999815
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Brand Name
Casappa
Contamination level max.
19/17/14 - ISO 4406
Displacement
26.42 cm3
Model code
PLM20.25R0-82E2-LEA/EB-N-EL-DH
Mounting flange
EU37 - 96x72
Number of mounting holes
4
Oil viscocity recommended
12 - 100 cSt
Port inlet
EU30
Port outlet
EU40
Pressure continous max.
170 bar
Pressure intermittent max.
190 bar
Pressure peak max.
210 bar
Rotation direction
Reversible (CW/CCW)
Rotational speed max.
2500 rpm
Rotational speed min.
500 rpm
Shaft cone
1:8
Shaft keyway
3,2 mm
Shaft type
Tapered
Förpackningsstorlek
0 pcs
Streckkod
5704334439295
Bruttovikt
3,17 Kg
Nettovikt
3,17 Kg
Ursprungsland
ITA
Intrastat artikelkod
84122981
Casappa Polaris, series 2 gear motor..
Housing: Aluminium..
Gear wheels with slide bearings and two aluminium end plates..
Front- and rear cover: Aluminium.
Connection flanges must be ordered separately.
