PLM20.16R0-82E2-LEA/EB-N-EL-DH Polaris motor, Casappa

PLM20.16R0-82E2-LEA/EB-N-EL-DH Polaris motor, Casappa

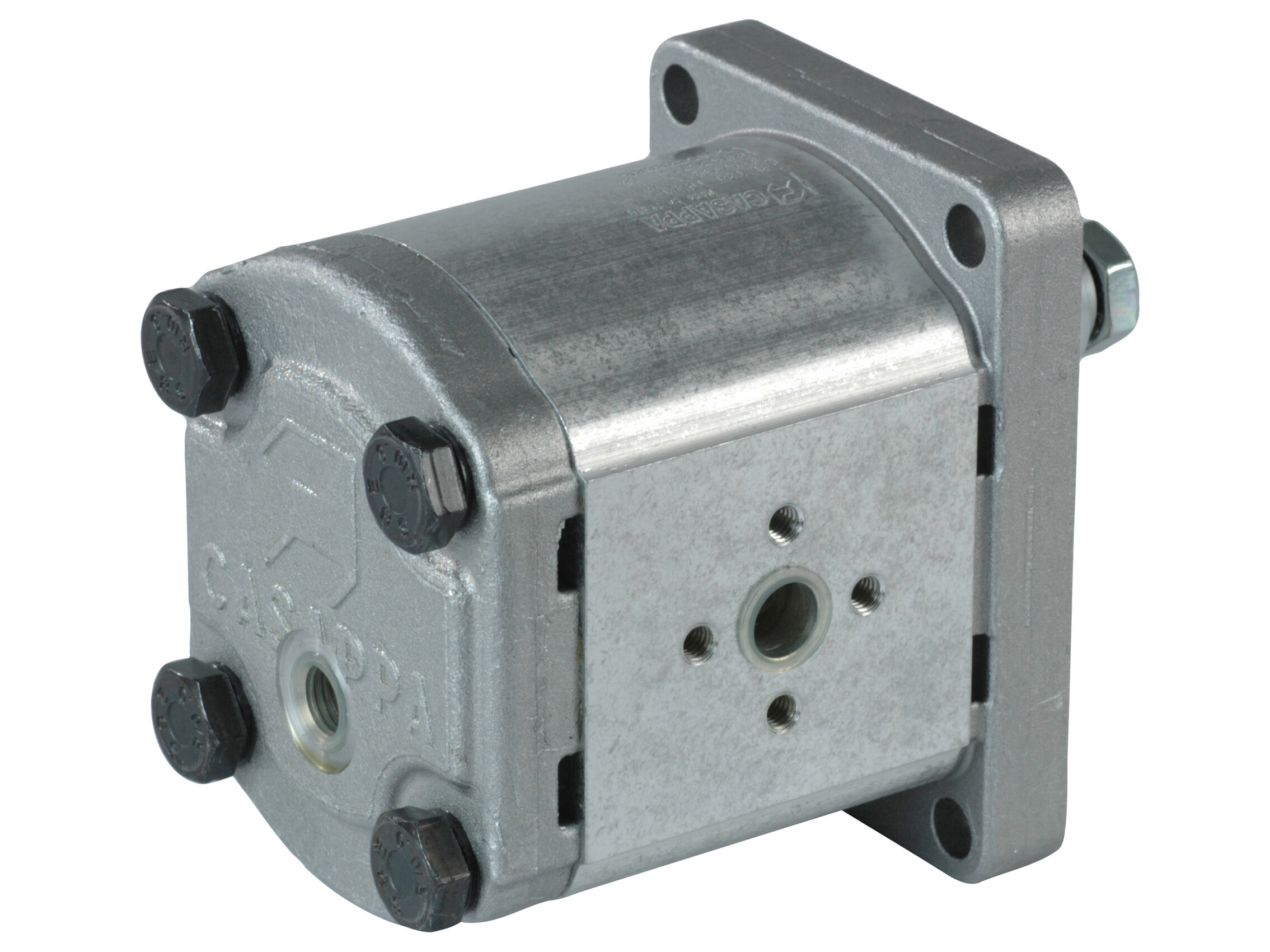

Casappa Polaris, series 2 gear motor..

Housing: Aluminium..

Gear wheels with slide bearings and two aluminium end plates..

Front- and rear cover: Aluminium.

Connection flanges must be ordered separately.

Partnumber:

01999811

Package size:

0 pcs

Min. order quantity is:

1 pcs

Accessories (8)

Nippelflange 1/2" BSP - (4) Boltcirkel 30mm

Partnumber: 1RD1/2X30

Vinkelflange 1/2" BSP - (3) Boltcirkel 30mm

Partnumber: 1RGD1/2X30

Nippelflange 3/4" BSP - (4) Boltcirkel 40mm

Partnumber: 2RD3/4X40

Vinkelflange 3/4" BSP - (3) Boltcirkel 40mm

Partnumber: 2RG3/4X40

Rørflange 1/2" BSP - (4) Boltcirkel 30mm

Partnumber: DFI1/2X30

Rørflange 3/4" BSP - (4) Boltcirkel 40mm

Partnumber: DFI3/4X40

Threaded flange 3/4" BSP - (4) 40mm - only suction

Partnumber: FI3/4X40

Threaded flange 22L - (4) 40mm

Partnumber: RDA40/22

Specifications
Dimensions and shipping

Aksel notgang

3,2 mm

Akselkonus

1:8

Akseltype

Tapered

Antal montage huller

Fortrængning

16.85 cm3

Forureningsgrad maks.

19/17/14 - ISO 4406

Model kode

PLM20.16R0-82E2-LEA/EB-N-EL-DH

Monteringsflange

EU37 - 96x72

Mærke navn

Casappa

Olieviskositet anbefalet

12 - 100 cSt

Port indgang

EU30

Port udgang

EU40

Rotationshastighed maks.

3000 rpm

Rotationshastighed min.

500 rpm

Rotationssretning

Reversible (CW/CCW)

Tryk intermitterende maks.

280 bar

Tryk kontinuerligt maks.

250 bar

Package size

0 pcs

Barcode

5704334439257

Gross weight

2,75 Kg

Net weight

2,75 Kg

Country of origin

ITA

Intrastat code

84122981

Product information

Casappa Polaris, series 2 gear motor..

Housing: Aluminium..

Gear wheels with slide bearings and two aluminium end plates..

Front- and rear cover: Aluminium.

Connection flanges must be ordered separately.
