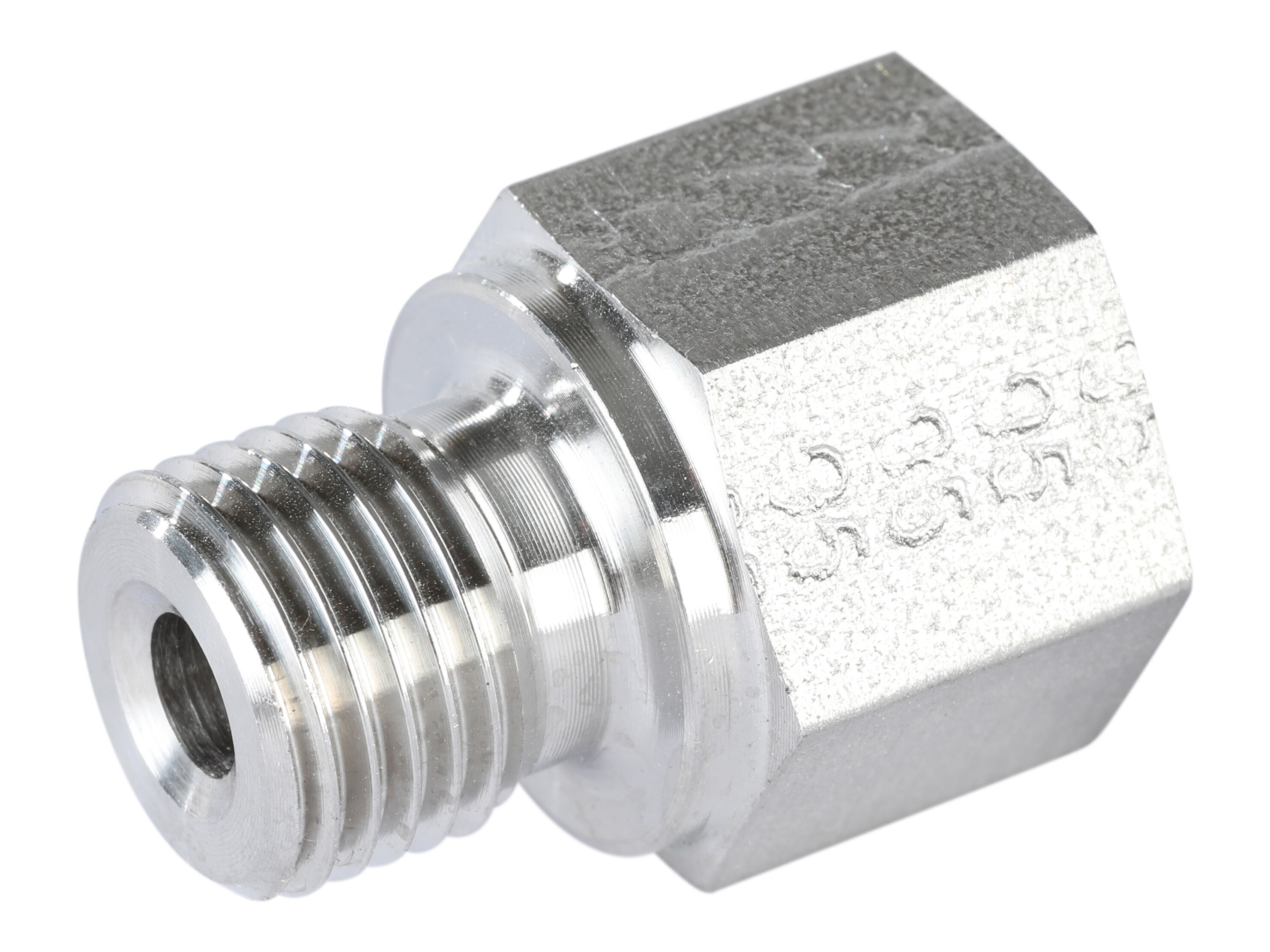

Blændprop 1/4 m.WD tætning Mat. 1.4571
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Partnumber:
VSCHR1/4/71
Package size:
0 pcs
Min. order quantity is:
1 pcs
Dimension D1
19 mm
Dimension L1
17 mm
Dimension S1
6 mm
Dimension i
12 mm
Gevind udvendig
G 1/4 BSP
Materiale
Rustfrit stål
Materialekvalitet
1.4571 / AISI316Ti
Model kode
VSCH 1/4 WD
Mærke navn
Volz
Pakningsmateriale
FKM/FPM (Viton®)
REACH compliant
Ja
RoHs compliant
Ja
Temperatur maks.
+200 °C
Temperatur min.
-25 °C
Thread T
G 1/4 BSP
Tryk maks.
400 bar
Package size
0 pcs
Barcode
5704295303116
Gross weight
0,02 Kg
Net weight
0,02 Kg
Country of origin
DEU
Intrastat code
73072910
Temperatur/trykreduktion:
-60°C - +20°C = 0%.
+20°C - +50°C = 4,5%.
+50°C - +100°C = 11%.
+100°C - +200°C = 20%.
+200°C - +300°C = 29%.
+300°C - +400°C = 33%.
Note: Opening 3D files requires a program that supports the file format
