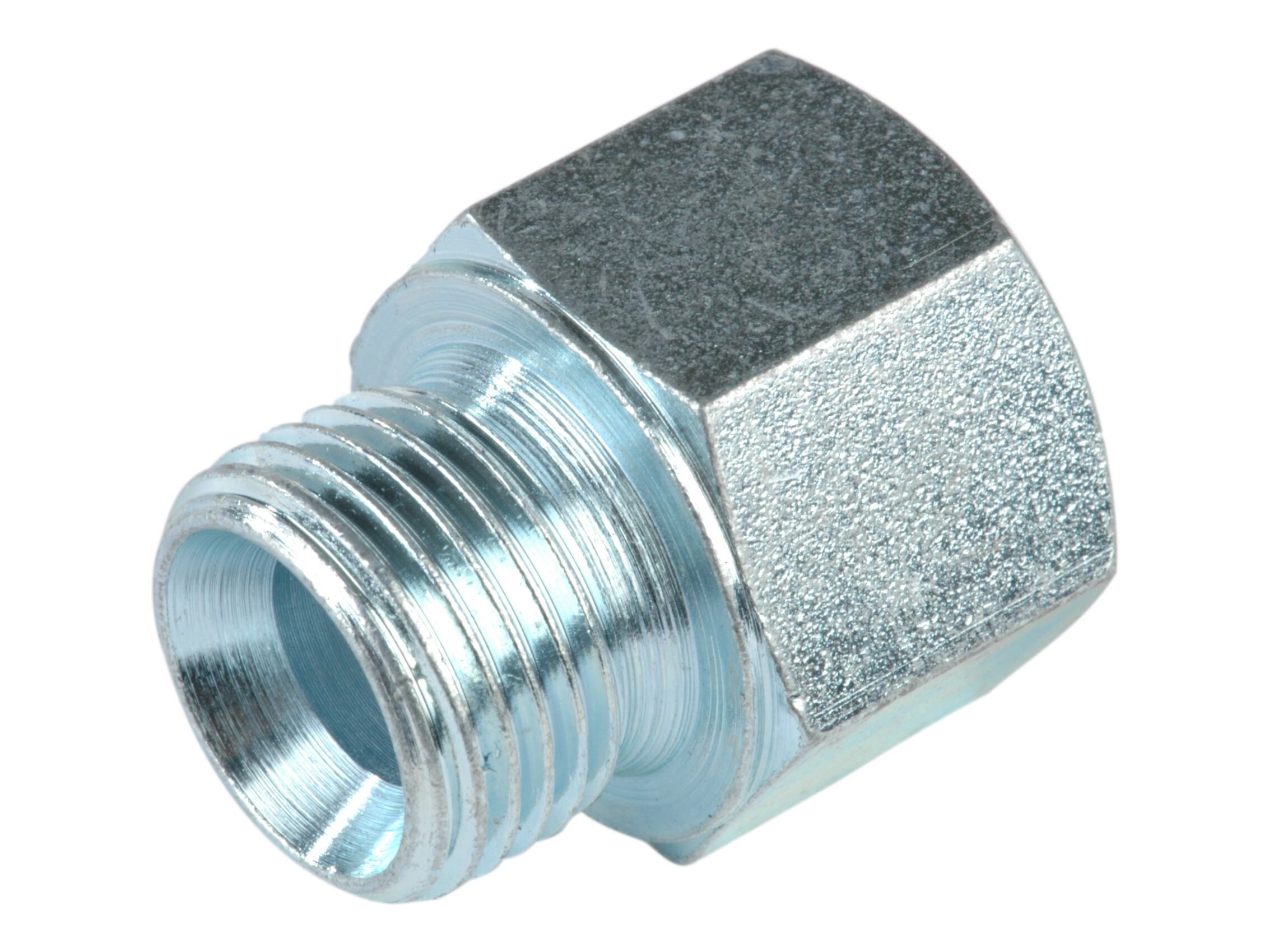

Reduktion - 1/2" BSP x 1 BSP indv - WD pakning
Reduktion - 1/2" BSP x 1 BSP indv - WD pakning
Varenummer:
RI1/2WD1
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227
Dimension D2
12 mm
Dimension L1
49 mm
Dimension L2
24.5 mm
Dimension S1
41 mm
Dimension i
14 mm
Hexagon
41 mm
Length
49 mm
Material
Stål
Model code
FI-RED-R1/2-WD-R1-B-W3
Pressure max.
400 bar
REACH compliant
Ja
RoHs compliant
Ja
Safety factor
4
Sealing material
NBR
Surface treatment
Zink-Nikkel belagt
Temperature max.
+100 °C
Temperature min.
-35 °C
Thread T1
G 1/2 BSP
Thread T2
G 1 BSP
Thread inner
G 1 BSP
Thread outer
G 1/2 BSP
Total length
49 mm
Type
Lang
Package size
0 pcs
Barcode
5704295276878
Gross weight
0,22 Kg
Net weight
0,22 Kg
Country of origin
DEU
Intrastat code
73071110
Reduktion - 1/2" BSP x 1 BSP indv - WD pakning
