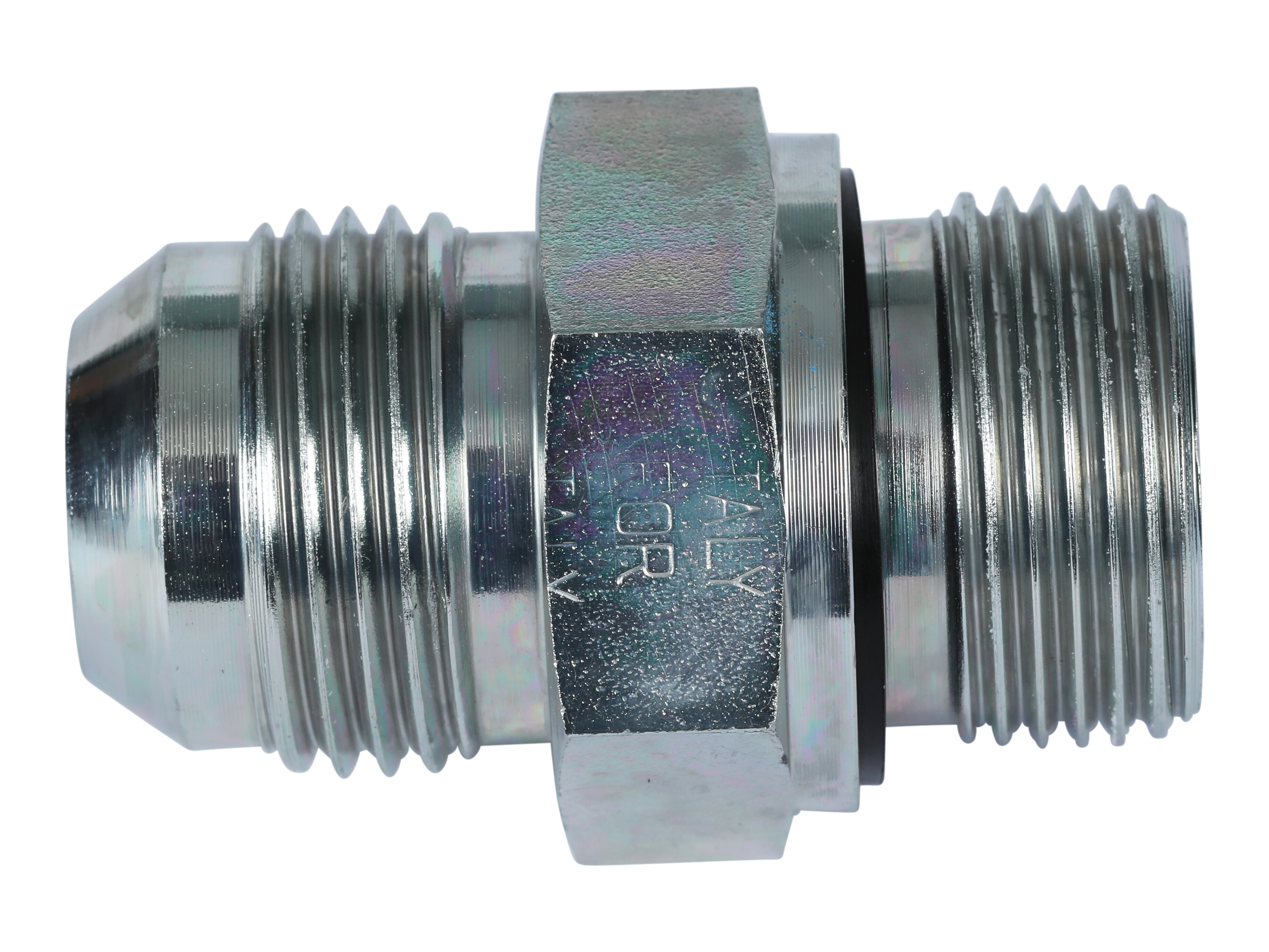

M-20-3/4WD - Indskruning 1.1/16-12 JIC udv x 3/4 BSP udv med WD pakning

M-20-3/4WD - Indskruning 1.1/16-12 JIC udv x 3/4 BSP udv med WD pakning

Indskruning 1.1/16-12 JIC udv x 3/4 BSP udv med WD pakning

Partnumber:

M-20-3/4WD

Package size:

0 pcs

Min. order quantity is:

1 pcs

Specifications
Dimensions and shipping

52 mm

22 mm

32 mm

16 mm

Diameter rør

20 mm

G 3/4 BSP

Gevind

G 3/4 BSP

Gevind udvendig

1.1/16-12 JIC

Gevind udvendig

G 3/4 BSP

1.1/16-12 JIC

Korrosions resistens

1400 hours salt spray DIN EN ISO 9227

Materiale

Stål

Mærke navn

FOR

Overfladebehandling

El-forzinket

Pakningsmateriale

NBR

Standard ISO

ISO 1179

18-20 mm

Temperatur maks.

+120 °C

Temperatur min.

-20 °C

Tryk maks.

280 bar

Vinkel

0 °

Package size

0 pcs

Barcode

5704295496665

Gross weight

0,18 Kg

Net weight

0,18 Kg

Country of origin

ITA

Intrastat code

73071110

Product information
Measure sketch

Indskruning 1.1/16-12 JIC udv x 3/4 BSP udv med WD pakning

Note: Opening 3D files requires a program that supports the file format
