Manometer påskruning - ø12L x 1/4" BSP indv - o-ringstætning
Manometer påskruning - ø12L x 1/4" BSP indv - o-ringstætning
Partnumber:
FIEMAD12LR14
Package size:
1 stk
Min. order quantity is:
1 stk
Angle
0 °
Brand Name
Stauff
Corrosion resistance
1200 hours salt spray DIN EN ISO 9227

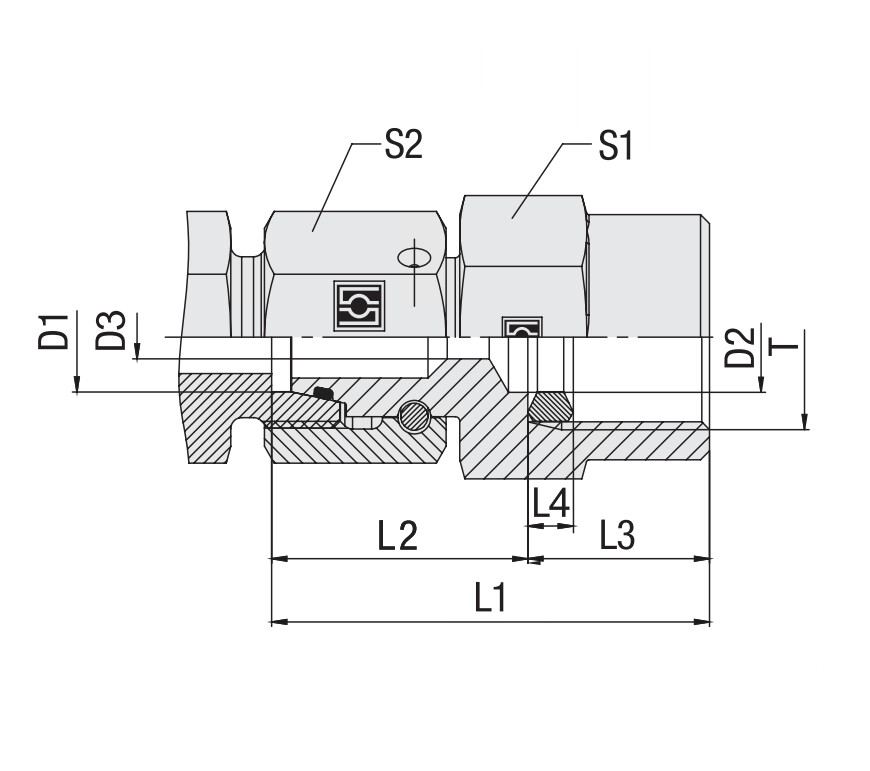

D1
12 mm
D2
5,5 mm
D3
3,5 mm
Diameter pipe
12 mm
L1
41 mm
L2
26,5 mm
L3
14,5 mm
L4
4,5 mm
Material
Stål
Model code
FI-EMAD-12LR-V-W3-DKI-DKO
PN
315 bar
Pressure max.
315 bar
REACH compliant
Ja
RoHs compliant
Ja
S1
19 mm
S2
22 mm
Safety factor
4
Sealing material
FKM/FPM (Viton®)
Series
L
Surface treatment
Zink-Nikkel belagt
T
G 1/4 BSP
Temperature max.
+200 °C
Temperature min.
-25 °C
Thread inner
G 1/4 BSP
Package size
1 stk
Barcode
5704334875444
Gross weight
Kg
Net weight
0,084 Kg
Country of origin
deu
Intrastat code
73071110
Manometer påskruning - ø12L x 1/4" BSP indv - o-ringstætning
Note: Opening 3D files requires a program that supports the file format
