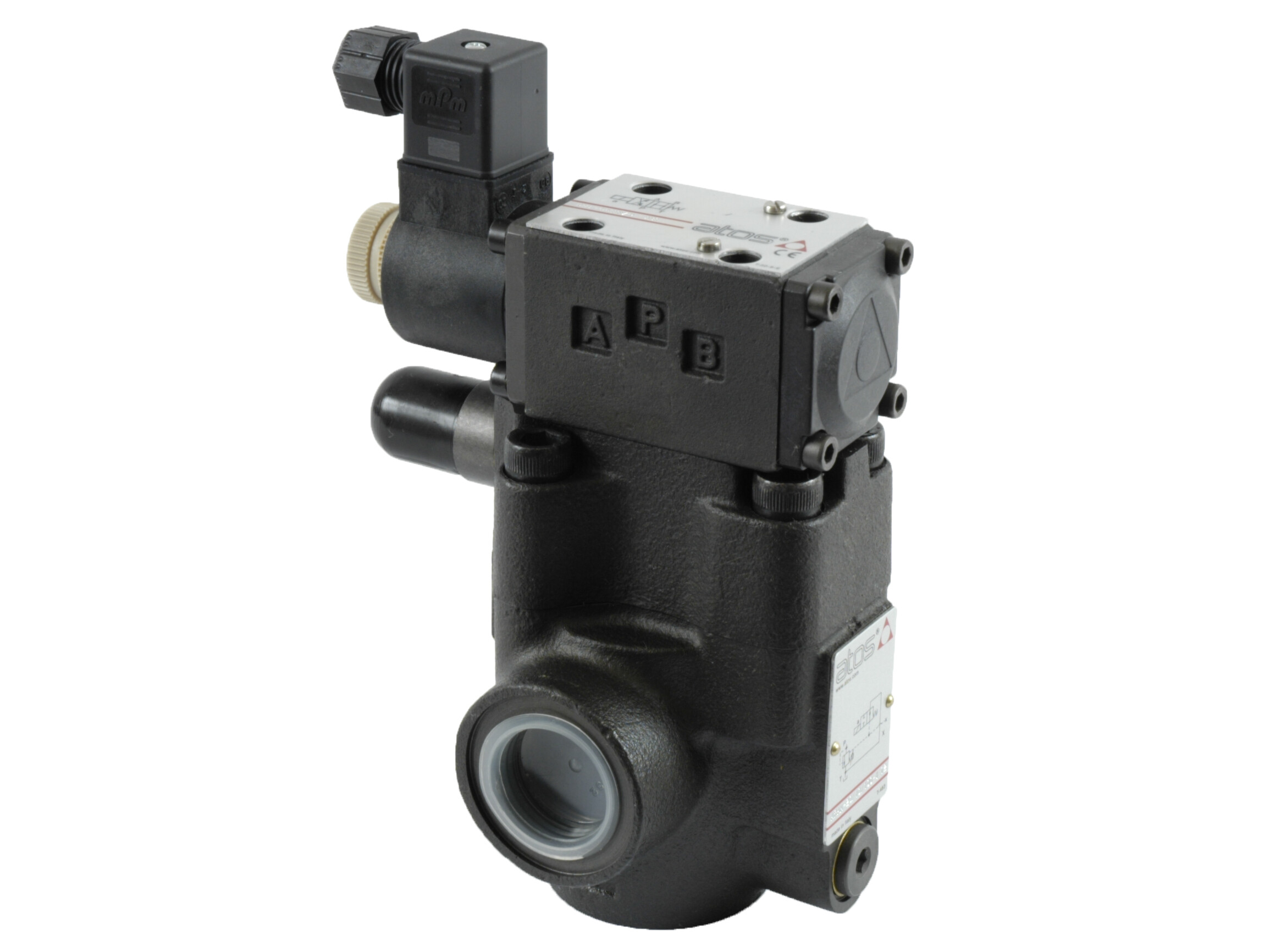

Atos el. trykbegr. ventil ARAM-20/10/350-LX24DC

Partnumber:

ARAM20/350H

Package size:

0 stk

Min. order quantity is:

1 stk

Specifications
Dimensions and shipping

Brand Name

Atos

Contamination level max.

20/18/15 - ISO 4406

Current type

Flowrate nominal LMin

350 lpm

Material

Stål

Model code

ARAM-20/350H

Oil viscocity recommended

15 - 100 cSt

Port P

G 3/4 BSP

Port T

G 3/4 BSP

Pressure T max.

120 bar

Pressure max.

350 bar

Pressure setting max.

350 bar

Pressure setting min.

8 bar

Temperature max.

+60 °C

Temperature min.

-30 °C

Voltage

24 V

Package size

0 stk

Barcode

5704295210827

Gross weight

5,06 Kg

Net weight

5,06 Kg

Country of origin

ITA

Intrastat code

84812010

Product information
Measure sketch

Atos el. trykbegr. ventil ARAM-20/10/350-LX24DC

Produkt datablad
