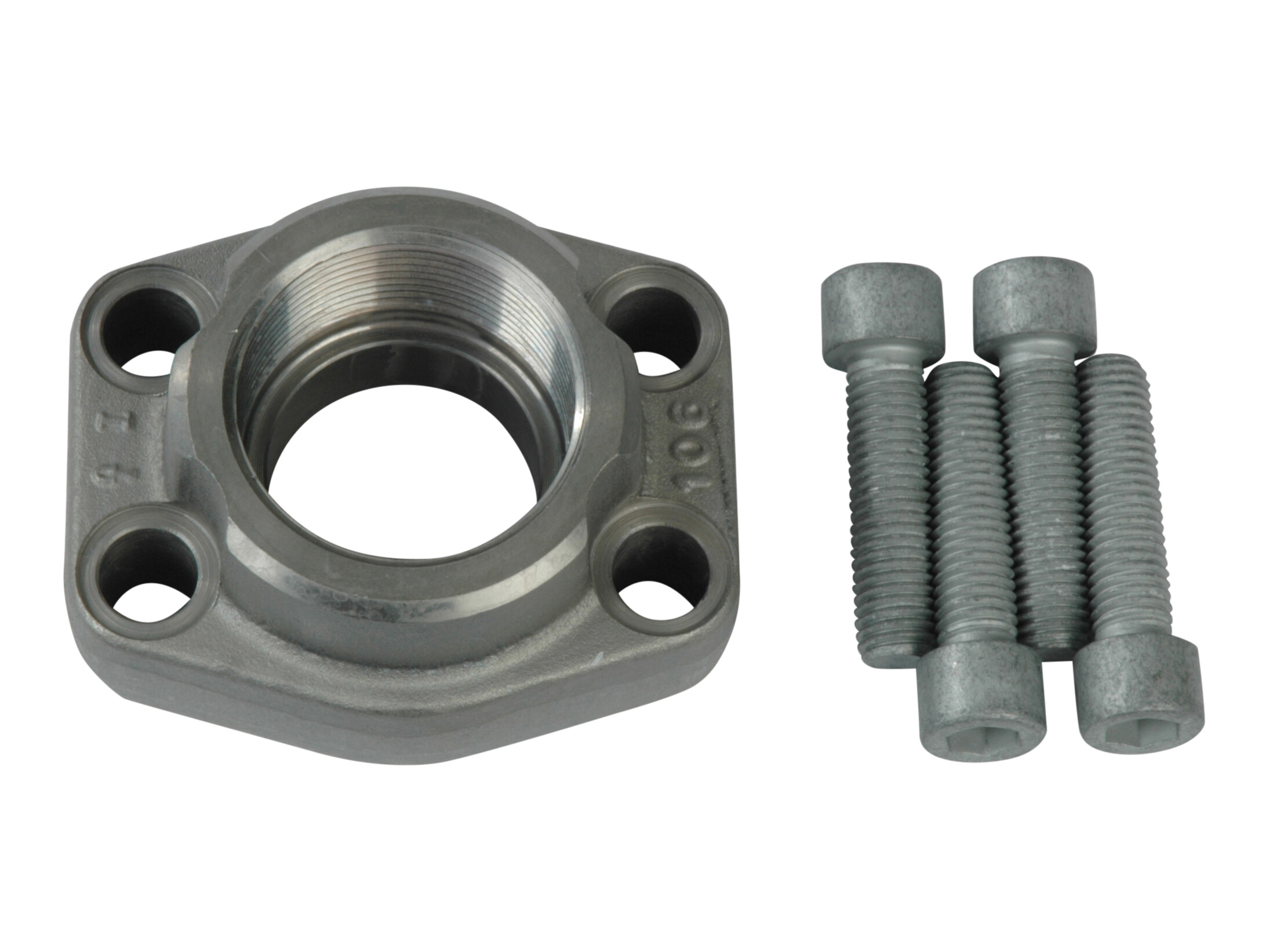

Gevindflange 1.1/2" SAE3000 x 1.1/2" BSP - komplet

Gevindflange 1.1/2" SAE3000 x 1.1/2" BSP - komplet

Varenummer:

AFS106GM

Pakke str.:

0 pcs

Min. bestillingsenhed er:

1 pcs

Specifications
Dimensions and shipping

Angle

0 °

Bolt dimension

M12x45 mm

Brand Name

Havit

Corrosion resistance

480 hours salt spray DIN EN 9227

Diameter flange

60.3 mm

Dimension C

69.9 mm

Dimension E

35.7 mm

Flange

1.1/2 "

Flange SAE/DIN

3000 PSI

Material

Stål

Number of bolts

O-ring

47.22X3.53 mm

Pressure max.

210 bar

Sealing material

NBR

Shore

Standard ISO

ISO 6162-1

Standard SAE

SAE J518 Code 61

Surface treatment

Zink-Nikkel belagt

Temperature max.

+90 °C

Temperature min.

-40 °C

Thread inner

G 1.1/2 BSP

Package size

0 pcs

Barcode

5704295921150

Gross weight

1,05 Kg

Net weight

1,05 Kg

Country of origin

DEU

Intrastat code

73079100

Product information
Measure sketch

Gevindflange 1.1/2" SAE3000 x 1.1/2" BSP - komplet
