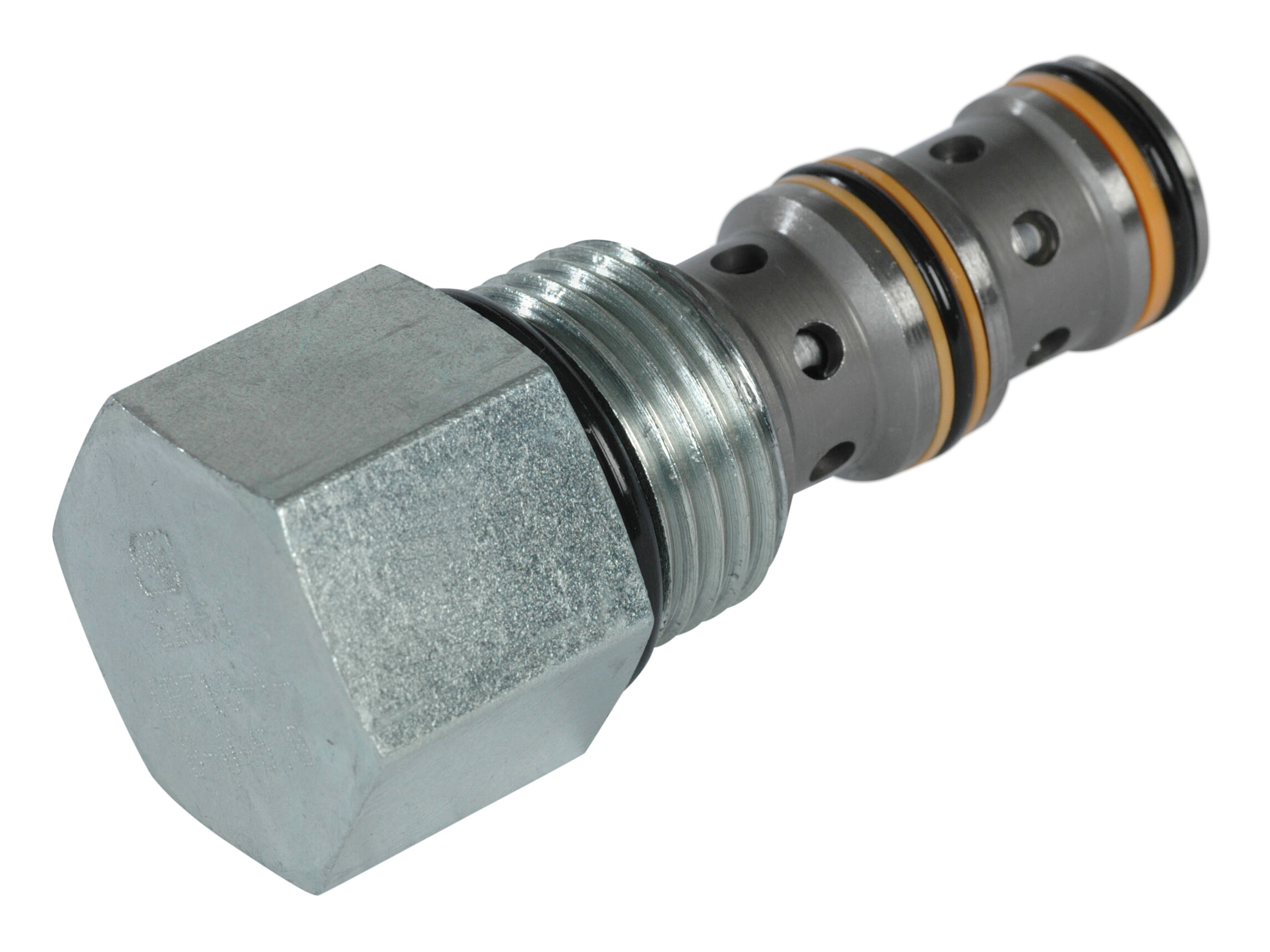

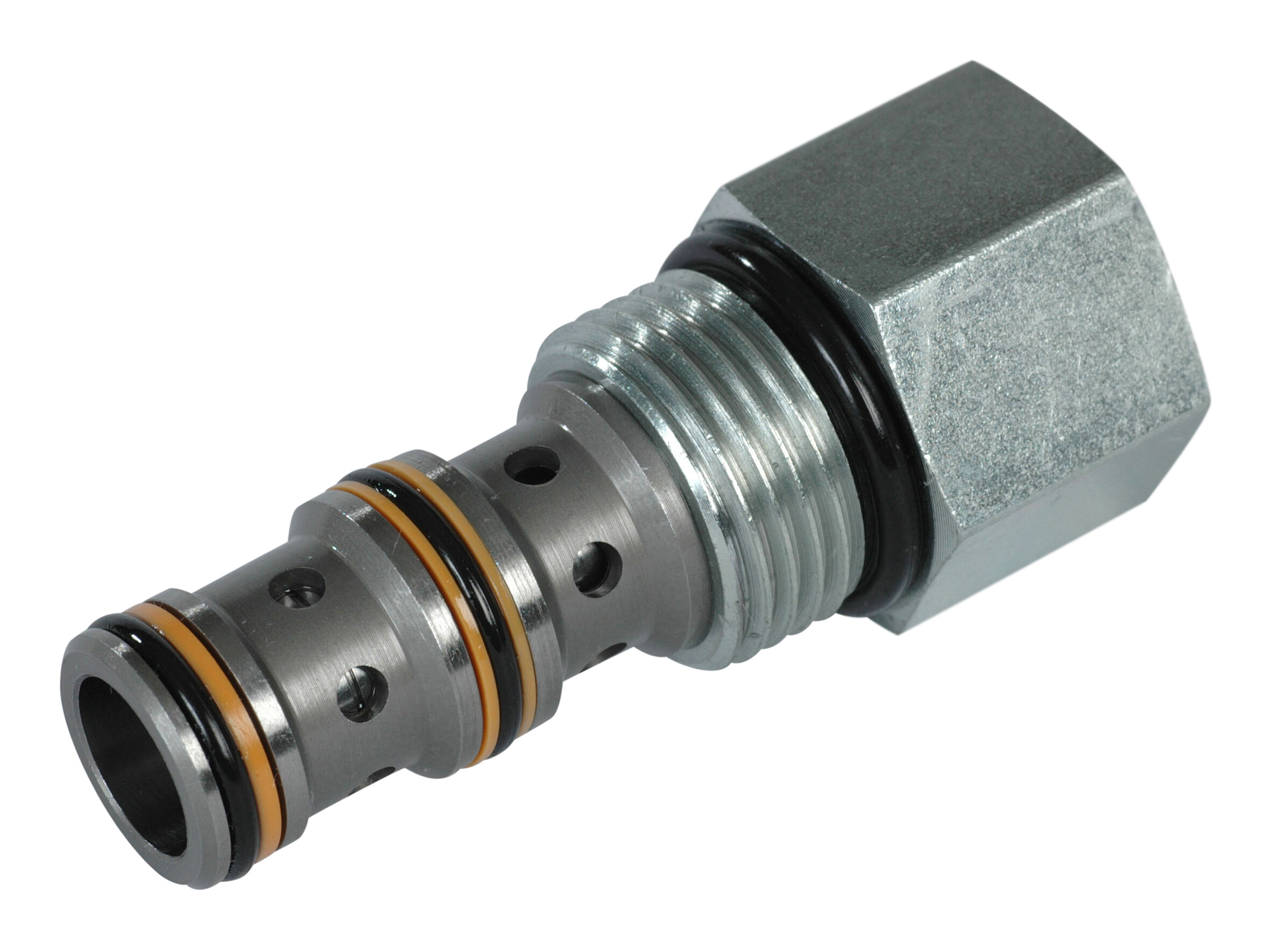

Fast Tryk Komp. Flow Vent. 38l/m 20l/m CP310-1-B-0-5.0

Fast Tryk Komp. Flow Vent. 38l/m 20l/m CP310-1-B-0-5.0

Denne ventil er en fast, trykkompenseret prioritetstype flowkontrolventil.

Varenummer:
130615
Pakke str.:
0 pcs
Min. bestillingsenhed er:
1 pcs
HOUSING, SDC10-3-SE3B (3/8) SDC10-3-SE3B (3/8)
Varenummer: 922514310
KIT, SEAL CP10-3 CAV BUNA N #
Varenummer: 120240
Brand Name
Danfoss
Cavity
SDC10-3
Contamination level max.
20/18/14 - ISO 4406
Flow max. regulated
20 lpm
Flow min. regulated
20 lpm
Inlet flow max.
38 lpm
Model code
CP310-1-B-0-5.0
Oil viscocity recommended
12 - 54 cSt
Pressure compensated
Nej
Pressure max.
210 bar
Sealing material
NBR
Temperature max.
+100 °C
Temperature min.
-40 °C
Torque tightening
41 - 47 Nm
Pakke str.
0 pcs
Stregkode
5704334467366
Brutto vægt
0,13 Kg
Netto vægt
0,13 Kg
Oprindelsesland
ITA
Intrastat varekode
84812010

Denne ventil er en fast, trykkompenseret prioritetstype flowkontrolventil.

Produkt datablad
